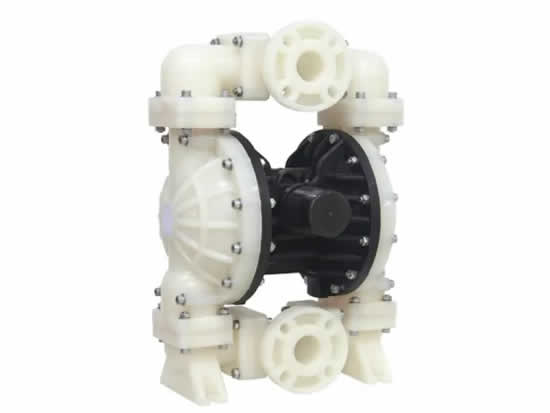

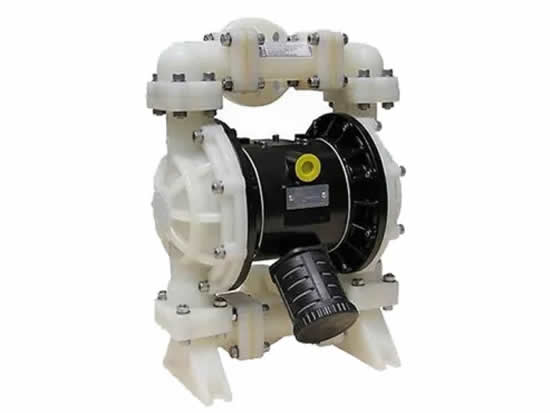

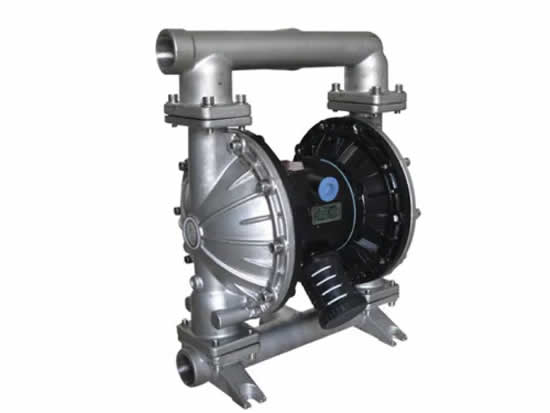

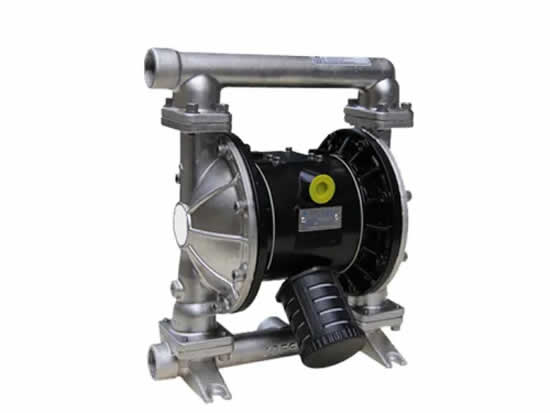

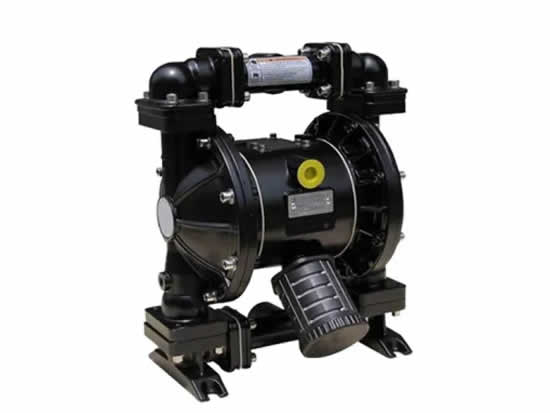

Pneumatic Double Diaphragm Pumps Air Diaphragm Pump

Air operated diaphragm pumps also called AODD pumps, are positive displacement pumps driven and powered by compressed air rather than an electric motor. The AODD pump design means that it can cope with pretty much any fluid from water to viscous slurries to 90% solids including large, shear sensitive particles without degrading them. Air operated double diaphragm pumps are able to benefit from variable flow or pressures just by adjusting the air power supply.

Material: Stainless steel, Cast Iron, Aluminium alloy, PP, plastic, Fluoroplastic,PTFE, PFA
Size: 1/2” ~4” , DN10mm~DN125mm
Flow Rate (Q) 0 - 60 (m3/h)
Lift Head (H) 0 - 70 (m)

The Pneumatic air operated diaphragm pump design makes it suitable for use in a wide range of industries:

Waste water
Petrochemica
Food and beverages
Pharmaceutical
Mining and construction
Printing, paint and ink

AODD Plastic diaphragm pump data sheet:


MODEL
Max. Flow
(LPM)
Max. Head
(m)
Max. Lift height
(m)
outlet pressure
(kg)
size
(mm)
lnlet calibar
(inch)
particle size
(mm)
SKQ-10 18.9 70 3 7 10 1/4 1.5
SKQ-15 18.9 70 3 7 15 1/4 1.5
SKQ-20 57 70 4.5 7 20 1/4 2.5
SKQ-25 57 70 4.5 7 25 1/4 2.5
SKQ-25A 116 84 5.4 8.4 25 1/2 3.2
SKQ-32 151 84 5.4 8.4 32 1/2 3.2
SKQ-40 151 84 5.4 8.4 40 1/2 3.2
SKQ-50 378.5 84 5.4 8.4 50 1/2 4.8
SKQ-65 378.5 84 5.4 8.4 65 1/2 4.8
SKQ-80 568 84 5.4 8.4 80 1/2 6.4
SKQ-100 568 84 5.4 8.4 100 1/2 6.4
SKQ-125 1041 84 7.6 8.4 125 3/4 10
