Air Operated Double Diaphragm Pump 5 inch in stainless steel

  • item no.:

    5 inch aodd pump
  • lead time:

    Customer Date
  • product orgin:

  • shipping port:

    Tianjin China
  • payment:

    L/C Or T/T
  • color:

    Customer Color
  • description

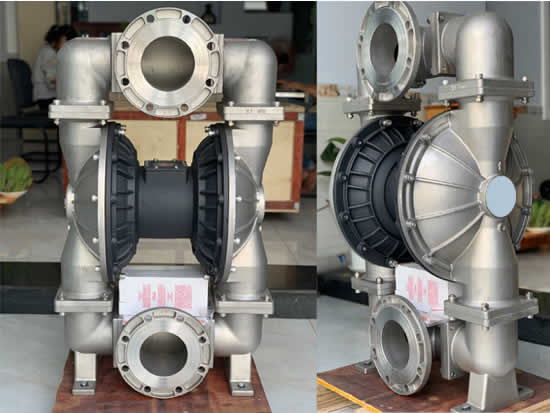

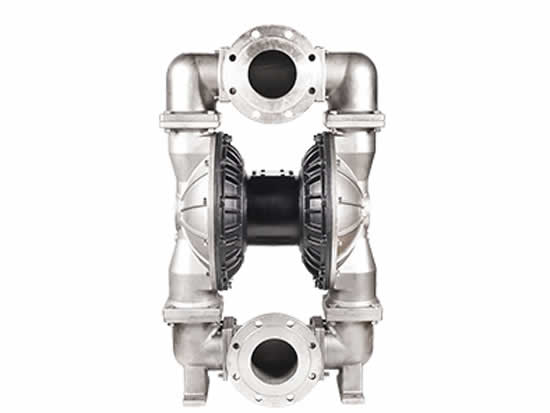

5 inch Air Operated Double Diaphragm (AODD) Pump in stainless steel
Maximum Flow gpm (lpm): 275(1040)
Maximum Discharge Pressure psi (bar): 120 (8.4)
Fluid Ports Inlet/Outlet (bsp): 5 inch
Air Inlet :3/4 inch
Material of Construction: Cast steel,Aluminum alloy,PP, SS, Polypropylene, Groundable, Acetal, PVDF
Maximum Solids in (mm): 3/8 (9.4)
Maximum Dry Suction Lift ft (m): 25 (7.6)

Air Operated Double Pneumatic diaphragm (AODD) pump is a new transport machinery in china , is currently one of the most innovative pump . Using compressed gas as a power source for a variety of corrosive liquid , with particles of liquid , high viscosity , volatile, flammable, poisonous liquid can be pumped optical exhaustion . There are four pneumatic diaphragm material: plastic , aluminum, cast iron , stainless steel. Pneumatic diaphragm pumps were used nitrile,rubber,neoprene , Viton , Teflon , depending on the liquid medium , poly ethylene forty-six . To meet the needs of different users . Placed in a variety of special occasions , for pumping a variety of conventional pumps can not pump the media , have achieved satisfactory results.

AODD Pump data sheet:



MODEL
Max. Flow
(LPM)
Max. Head
(m)
Max. Lift height
(m)
outlet pressure
(kg)
size
 (mm)
lnlet calibar
(inch)
particle size
 (mm)
SKQ-10 18.9 70 3 7 10 1/4 1.5
SKQ-15 18.9 70 3 7 15 1/4 1.5
SKQ-20 57 70 4.5 7 20 1/4 2.5
SKQ-25 57 70 4.5 7 25 1/4 2.5
SKQ25A 116 84 5.4 8.4 25 1/2 3.2
SKQ-32 151 84 5.4 8.4 32 1/2 3.2
SKQ-40 151 84 5.4 8.4 40 1/2 3.2
SKQ-50 378.5 84 5.4 8.4 50 1/2 4.8
SKQ-65 378.5 84 5.4 8.4 65 1/2 4.8
SKQ-80 568 84 5.4 8.4 80 1/2 6.4
SKQ-100 568 84 5.4 8.4 100 1/2 6.4
SKQ-125 1041 84 7.6 8.4 125 3/4 10


Request a free quote
