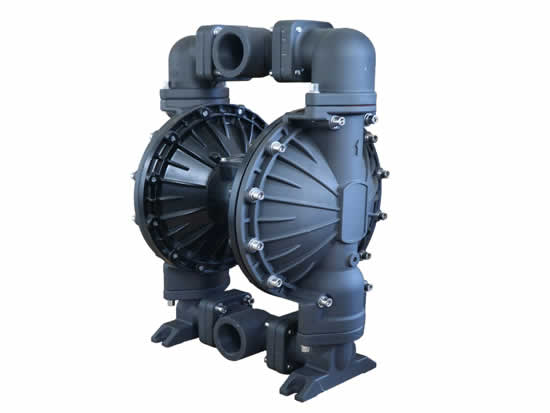

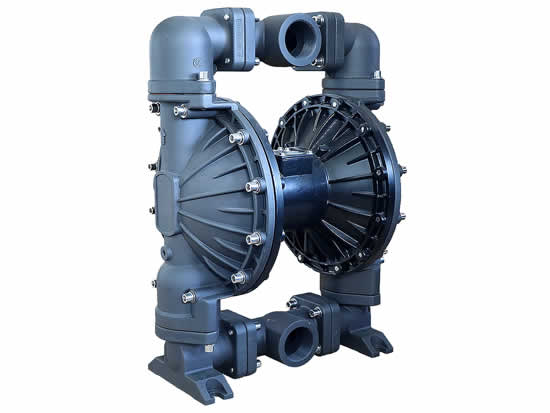

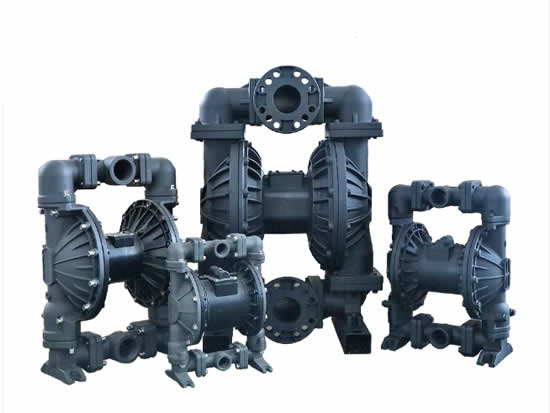

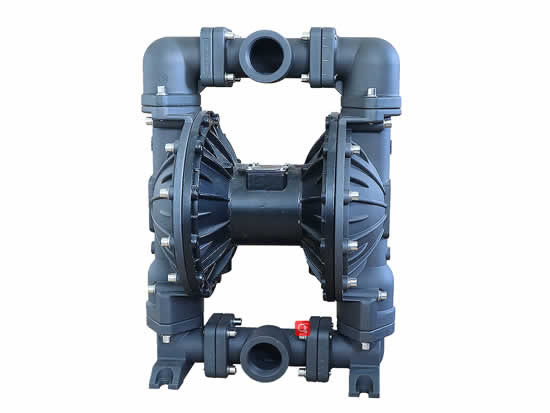

50 2 inch Aluminum Alloy Air Operated Pneumatic Diaphragm Pump

  • item no.:

  • lead time:

    50 2" aodd pumps
  • product orgin:

  • shipping port:

    Tianjin China
  • payment:

    L/C Or T/T
  • color:

    Customer Color
  • description
The Air Operated Pneumatic Diaphragm Pump manufactured by china saiken pumps, and it is the most advanced type of diaphragm pumps in market for the moment. It adopts three-way air pilot valve to achieve real no dead stop and faster reversing. Compared with other traditional domestic pumps, it has larger flow rate, more stable operation, and smaller pulsation. It is widely applied in waste water treatment, chemical industry, petrochemical industry, painting, ceramics, environmental protection, printing and dyeing, etc. to deal with all kinds of corrosive, volatile, flammable, poisonous fluids with particles and high viscosity.

We have the following materials available, and our engineers will select the most suitable and economical material for you according to your specific working conditions.

Wetted parts material: PP, PVDF, Acetal, Aluminum alloy, Ductile iron, stainless steel, etc.

Diaphragm material: Teflon, Santoprene, Viton, Hytrel, Buna-N, etc.

Available inlet/outlet size: 1/4", 3/8", 1/2", 3/4", 1", 1-1/2", 2", 3", 4", 5"

Connection type:
-Threaded connection: Plastic pumps from 1/4" to 1-1/2", and all metal pumps.
-Fanged connection: Plastic pumps from 1/2" to 5".

Aodd Pump Advantages:
- Superior air motor, no leakage and keep strong driving force even use after long time;
- Double thicken fluid cover than ordinary pump
- Perfect sealing design
- PP material, diaphragms and all sealing parts all the best
- Easy maintenance
- Lube free

Max working pressure 120psi (0.84Mpa,8bar)
Max flow rate 150 gpm (568 lpm)
Max reciprocating speed 145 cpm
Max suction height 5m
Max permitted grain 0.24in (6 mm)
Max air consumption 140 scfm(70L/s)
Air inlet size 1/2 in.npt
Air outlet size 3/4 in.npt
Fliud inlet size 2 in
Fliud outlet size 2 in.
Weight Aluminum alloy pump 29kg;SS pump 47kg
