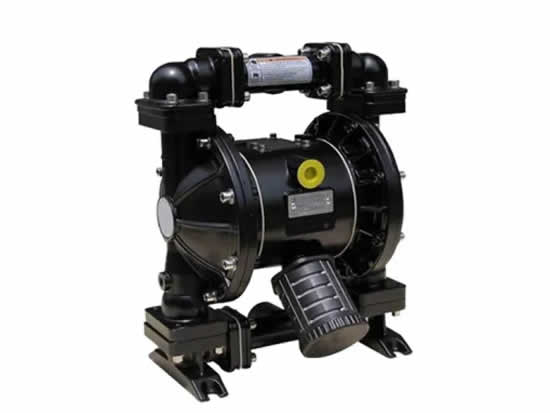

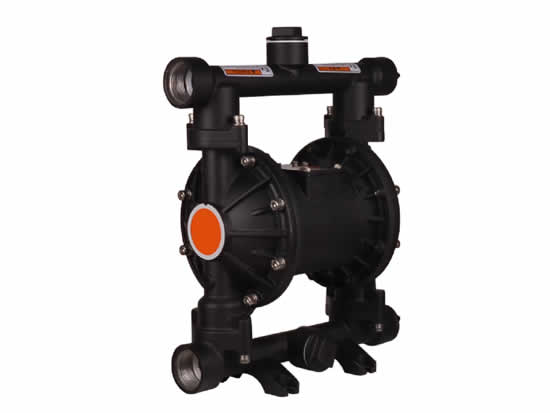

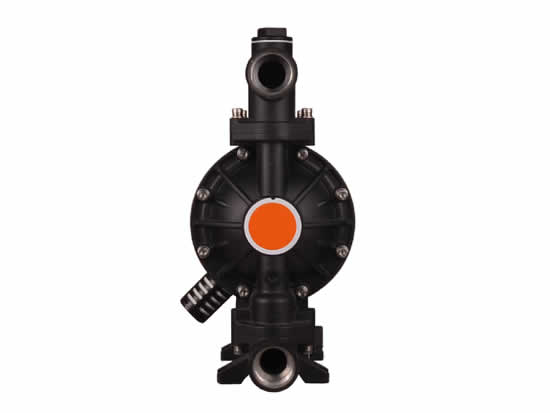

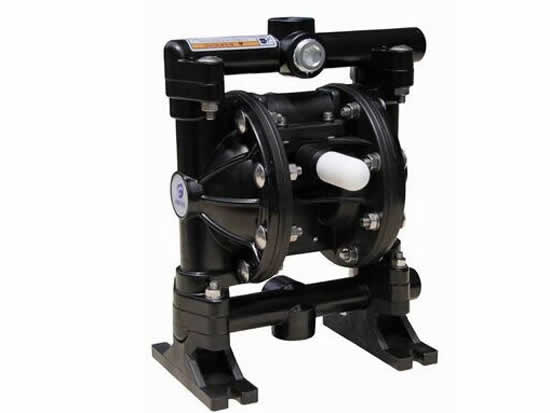

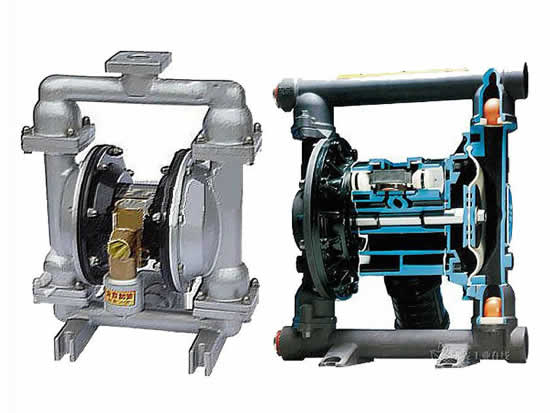

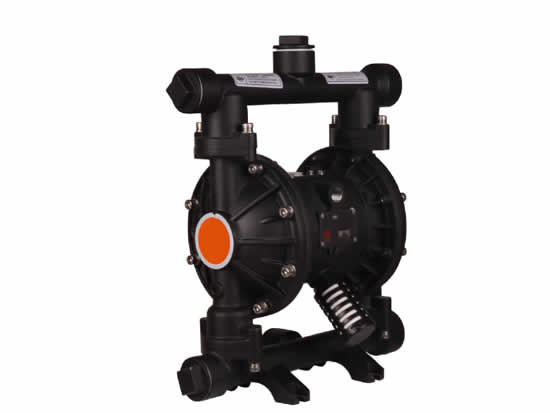

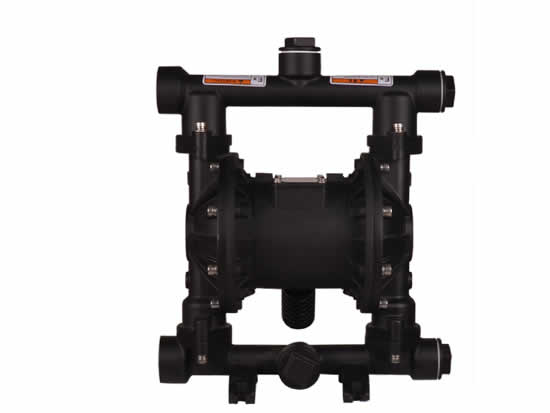

Aluminum Alloy Air Driven Double Diaphragm pumps

  • item no.:

  • lead time:

    Customer Date
  • product orgin:

  • shipping port:

    Tianjin China
  • payment:

    L/C Or T/T
  • color:

    Customer Color
  • description
Air Operated Double Diaphragm Pump (AODD pump)  is a new type of conveying machine in china, uses compressed air as the power source for various corrosive liquids, liquid with particles, high viscosity, volatile, flammable and highly toxic liquid.
Pump Casing Materials: stainless steel,Polypropylene,PVDF,Cast steel, Aluminum alloy,PP, Polypropylene, Groundable, Acetal, PVDF
Diaphragm Materials: Santoprene, Hytrel, PTFE , Viton

Aluminum Alloy Air Driven Double Diaphragm Pump:
Maximum Flow gpm (lpm): 150(568)
Maximum Discharge Pressure psi (bar): 120 (8.4)
Fluid Ports Inlet/Outlet (bsp): 3 inch
Air Inlet :1/2 inch
Material of Construction: Cast steel,Aluminum alloy,PP, SS, Polypropylene, Groundable, Acetal, PVDF
Maximum Solids in (mm): 1/4 (6.4)
Maximum Dry Suction Lift ft (m): 18 (5.48)

We have the following materials available, and our engineers will select the most suitable and economical material for you according to your specific working conditions.

Wetted parts material: PP, PVDF, Acetal, Aluminum alloy, Ductile iron, stainless steel, etc.

Diaphragm material: Teflon, Santoprene, Viton, Hytrel, Buna-N, etc.

Available inlet/outlet size: 1/4", 3/8", 1/2", 3/4", 1", 1-1/2", 2", 3" inch

Pneumatic (air-operated) AODD pump Connection type:
Threaded connection: Plastic pumps from 1/4" to 1-1/2", and all metal pumps.
Fanged connection: Plastic pumps from 1/2" to 3".

Air Diaphragm Pump Application area:
Chemical Industry; Coating Industry; Painting Industry; Dye Industry; Pigment and Textile Chemical Industry; Food Industry; Water treatment Industry; Petroleum Industry; Environmental protection Industry; Pharmaceutical Industry
