3QGB Triple Screw Asphalt Pump

  • item no.:

  • lead time:

    Customer Date
  • product orgin:

    CHINA BOTOU SAIKEN PUMPS CO.LTD
  • shipping port:

    Tianjin China
  • payment:

    L/C Or T/T
  • color:

    Customer Color
  • description

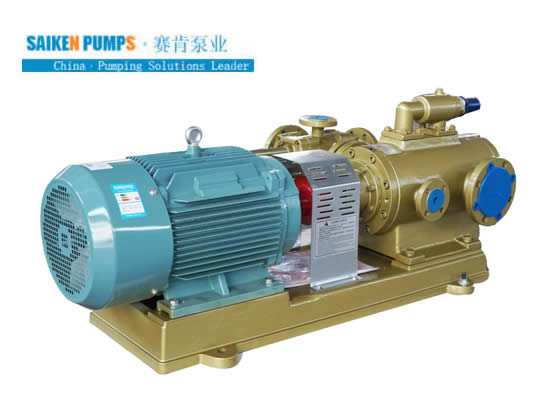

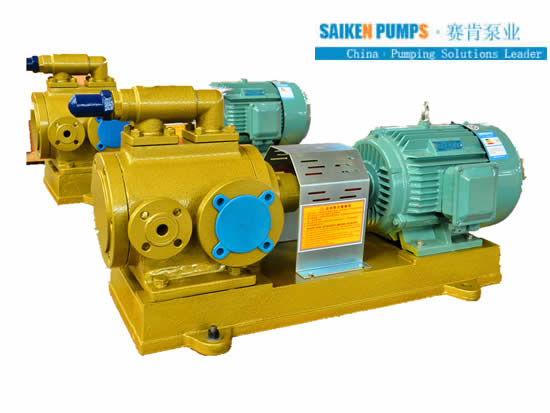

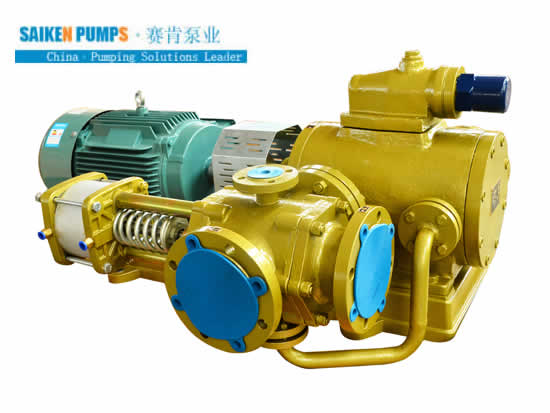

3QGB Triple Screw Asphalt Pump Main Parameter:
Structure: screw type asphalt  pump
Manufacturer: china saiken pumps
Medium viscosity: 3.0~1500 mm2/s;
Flow range: 35~1700 L/min;
Maximum pressure: 2.5 Mpa;
Max. temperature: 300 deg C
Speed: 960-1450r/min
Driving : electric
Heating:Pump body with jacketed

Overview:
china saiken brand screw asphalt pump (jacketed bitumen pump) is a newly desinged rotor displacement pump, with unique desgin of double jacket casing, also with small volume, high speed allowed, small plusation, stable capacity, low noise, high efficiency.
Applicable to pump a variety of substance with temperature below 350℃ and high vicosity of 30-760mm2/s(1.2-100 °E).
According to the high-viscosity characteristics of asphalt,based on the existing valves,starting from practical situations and absorbing domestic and oversees adbanced thoughts,the company has researched and developed pneumatic heat-preservation tee valve for conveying high-temperature asphalt,in order to hreatly raise the production efficiency of asphalt mixing equipment and asphalt system.

Pump fuel oil, crude oil, heavy oil, asphalt, rubber, resin such various types of lubrication oil-type liquod in industries of petrol eum, chemical fiber, metallurgy, road construction, electrity, mining, shipbuilting, glass, rubber.

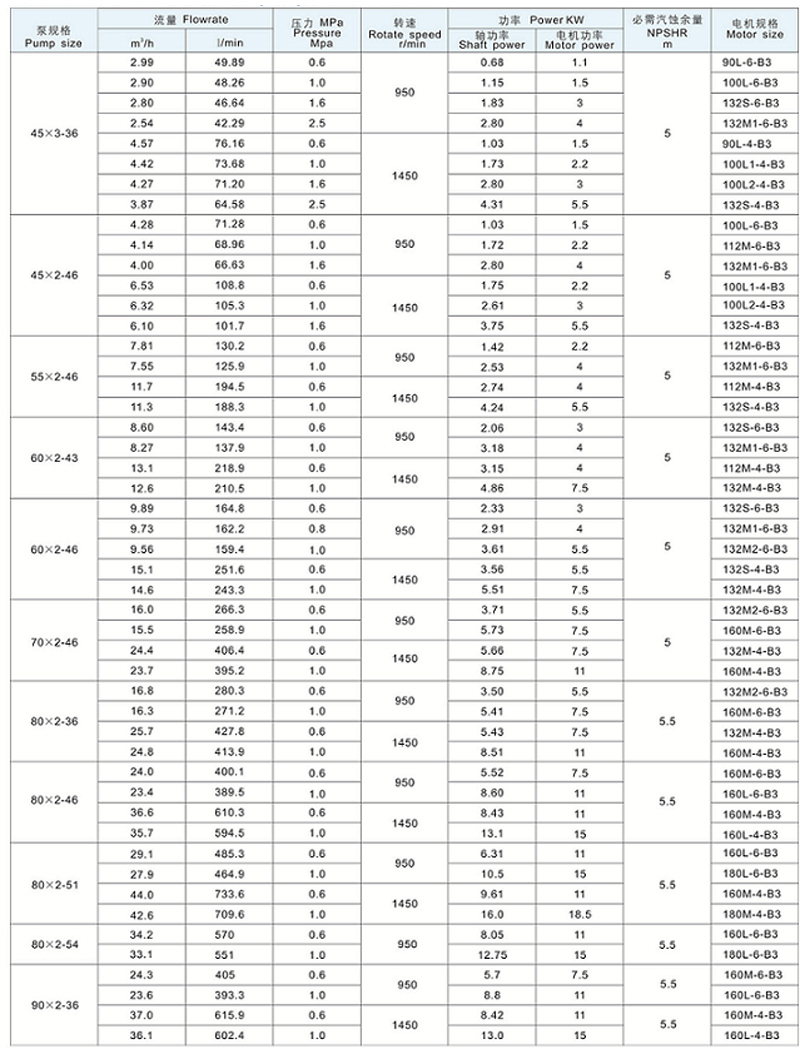

3QGB Triple Screw Asphalt Pump parameter of partial model:

3QGB Triple Screw Asphalt Pump
