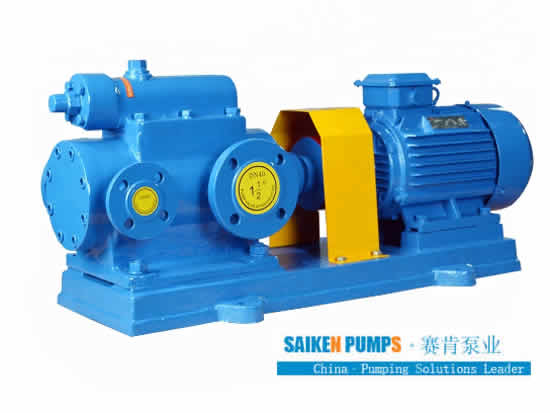

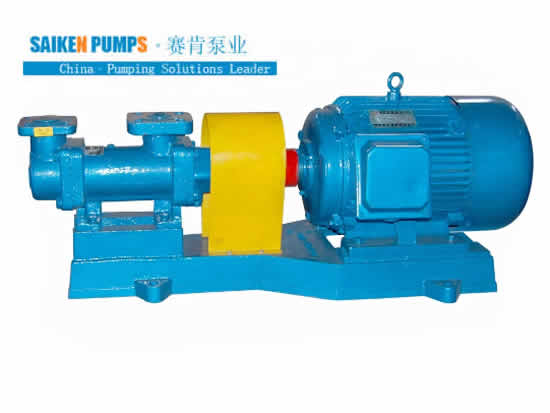

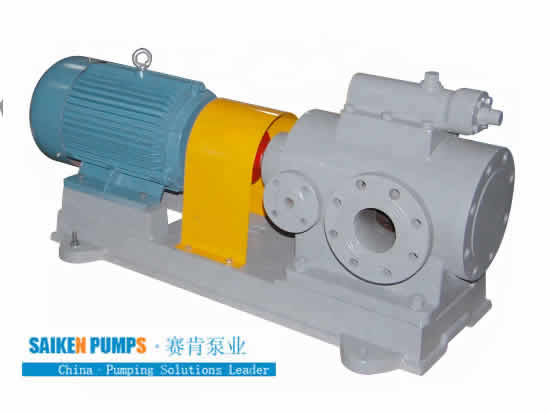

3QGB Bitumen Screw Pump With Jacketed

item no.:
80*2-46100*2-4645*3-46
lead time:
Customer Date
product orgin:
Customer Date
shipping port:
Tianjin China
payment:
L/C Or T/T
color:
Customer Color

contact now

description

Product Overview :

3QGB series bitumen three screw pump with Jacketed is rotor type positive displacement pump, it is to use screw meshing principle, rely on the rotation of the screw in the pump set inside mesh with each other, the conveying medium closed in the gear cavity, along the screw axial continuous uniform to push to the outlet for the system to provide the stable pressure.

3QGB/LQ3G bitumen screw pump with Jacketed Manufacturer Exporter & supplier in china.

LQ3G bitumen three screw pump

Application :

LQ3G series bitumen three screw pump with heat jacket is suitable for various non-corrosive oil and similar oil and lubricity liquid. Transport the liquid viscosity range is generally 3.0-760 best callus induction/s (1.2~100 oe), High viscosity medium can be pumped after overheating, The temperature less than 350 ℃.

Our company produces the 3 QGB series three screw asphalt pump (insulation type asphalt pump) is mainly used for conveying high viscosity and high temperature lubricity liquid. Often used in asphalt heavy fuel oil, heavy gear oil, and other media transmission. Heat transfer fluid can be steam, hot oil and hot water, cold carrier can be gas and liquid.

Features:

3QGB series three screw asphalt pump characteristics is of simple structure, small pressure pulsation, flow stability, work reliable and balanced, allow high speed, low noise, high efficiency, long service life, self-priming capacity.

Three screw asphalt pump main flow parts are equipped with hollow sandwich, and provided with through steam, heat/hot water, heat conduction oil on the conveying liquid and pump heat, heat preservation, and other functions, when conveying large viscosity should be the speed reducer, speed regulating motor or pulley and transmission mode, reduce pump speed.

Purpose and use scope:

3QGB series three screw asphalt pump is widely used in petroleum, chemical, metallurgy, machinery, electric power, machine tool, ship, glass, highway and other industries.

3 QGB series three screw asphalt pump is applicable to transport fuel oil, lubricating oil, hydraulic oil, crude oil, asphalt and other similar oil lubricating oil and lubricity liquid.

3QGB series three screw asphalt pump in the industrial field for lubrication pump, the hydraulic system of hydraulic pump, in the fuel system of transport and booster pump, the oil system for conveying and petrol pump.

Performance Data:

Model	Capacity (m3/min)		Pressure	Speed	KW		Suction head
Model	m3/h	L/min	MPa	r/min	Shaft power	motor power	m
45× 3-36	2.8	46	0.6	950	0.8	1.1	5
45× 3-36	4.2	70	0.6	1450	1	1.5	5
45× 2-46	4.2	70	0.6	950	1	1.5	5
45× 2-46	14	233	4	1450	4.3	5.5	5
62× 2-43	8.58	143.4	0.6	950	2.06	3	5
62× 2-43	13.1	218.9	0.6	1450	3.15	4	5
62× 2-46	9.8	163	0.8	950	2.9	4	5
62× 2-46	25	417	1	1450	8.5	11
80× 2-45	23.1	386.3	1	950	8.6	11	5
80× 2-45	35.7	594.5	1	1450	13.1	15	5
80× 2-51	26.9	448.3	1	950	10.5	15	5
80× 2-51	41	684.1	1	1450	16	18.5	5
90× 2-36	24.2	403.5	0.6	950	5.52	7.5	5.5
90× 2-36	36.1	602.4	1	1450	13	15	5.5
90× 2-36	27.5	457.6	1	950	10.2	15	5.5
90× 2-36	41.9	698.5	1	1450	15.5	18.5	5.5
90× 2-46	34	566.7	0.8	950	9.7	11	5.5
90× 2-46	51.4	856.1	1	1450	18.6	22	5.5
100× 2-46	72.7	1212	0.6	950	16.5	18.5	5.5
100× 2-46	71.2	1187	1	1450	25.5	30	5.5
100× 2-51	55.7	928.6	1	950	20.8	30	5.5
100× 2-51	85	1417.2	1	1450	31.8	37	5.5
110× 2-46	58.9	951.7	1	950	21.8	30	5.5
110× 2-46	94.6	1577	1	1450	33.9	45	5.5
120× 2-42	65.4	1090	1	950	24.5	30	5.5
120× 2-42	105	1760	1	1450	38.2	45	5.5
120× 2-46	79.6	1327	0.6	950	17.8	22	5.5
120× 2-46	123	2059	1	1450	44.1	55	5.5
150× 2-46	154	2582	1	950	54.5	75	5.5
150× 2-46	236.5	3942.2	1	1450	82.2	90	5.5
