Stainless Steel Gear Pump For Chocolates

  • item no.:

  • lead time:

    Customer Date
  • product orgin:

  • shipping port:

    Tianjin China
  • payment:

    L/C Or T/T
  • color:

    Customer Color
  • description

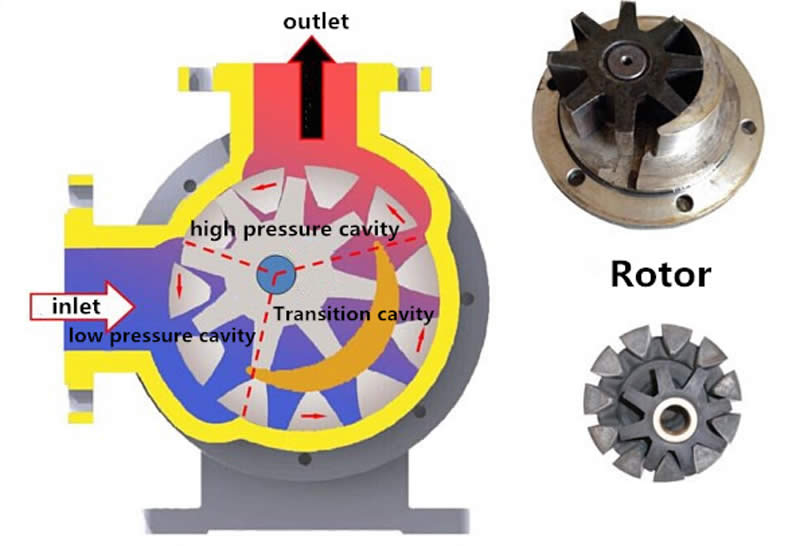

NYP type Stainless Steel Gear Pump design is based on an internal idler gear rotating inside of a larger rotor. Internal gear pumps are robust, give an even flow, handle both low and high viscosity products, are capable of high pressure and are self-priming. In the viscosity level, they are as low as 1.0 cst to 300,000 cst.

Stainless Steel Gear Pump For Chocolates

*Structure: Internal Gear
*Manufacturer: China Boutou saiken pumps
*MODEL:NYP0.78,NYP2.3,NYP3.6,NYP7.0,NYP24,NYP52,NYP80,NYP111,NYP160,NYP320,N*   YP220,NYP650,NYP727,NYP1670.
*Pressure: Low Pressure (4-10 Bar)
*Temperature: 0°C To 300 C
*Direction: Multi Direction
*Speed: 40 RPM And 1440 RPM (May Vary as per the Application and Use)
*Construction Available: Jacketed / Non Jacketed Type
*MOC: As per Application of Use (SS,C.S, C.I)
*Extra Accessories: Hot Oil Circulation Pump to Keep Pump Warm for Such Special
*Applications:excels at handling clean high viscous fluids,for example:Resins,Glue, Molasses,Chocolates, fats and oils,Resins and polymers,Bitumen and tar,Fuel and lubricants,Solvents,Soap and personal care products.

Examples of applications:
Gear pumps are used or have a potential in all types of industries such as:
Petrochemicals   Pure or filled bitumen, pitch, diesel oil, crude oil, lube oil Chemicals Sodium silicate, acids,   plastics, mixed chemicals, isocyanates Paint and Ink Resins and Adhesives
Pulp & Paper       Acid, soap, lye, black liquor, kaolin, lime, latex, sludge
Food                       Chocolate, cacao butter, fillers, sugar, vegetable fats and oils, molasses, animal feed.

NYP type Stainless Steel Gear Pump Parameter:

NYP Stainless Steel Gear Pump For Chocolates
