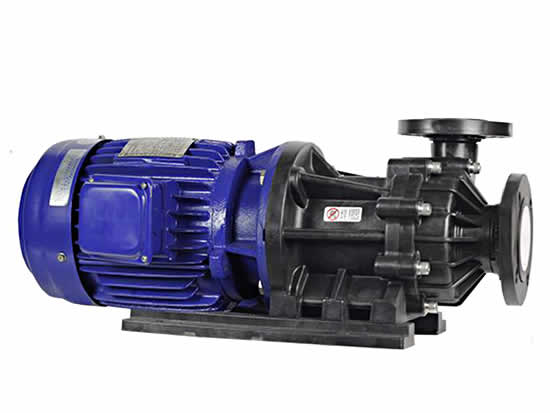

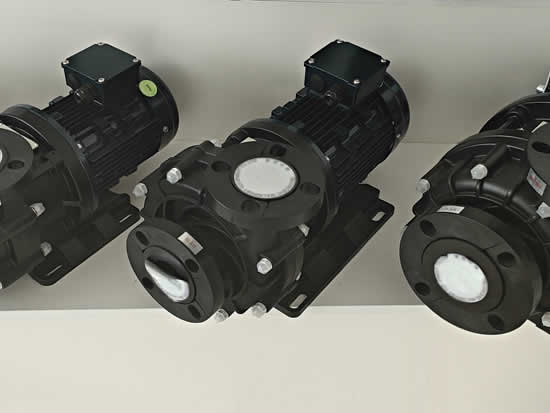

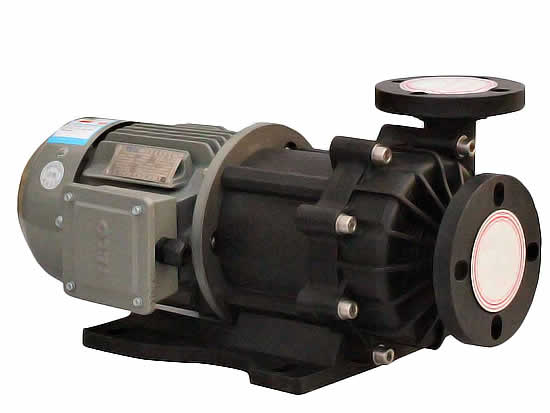

PP/PVDF MPDH-425 Magnetic drive pumps

Mag drive centrifugal pumps series PP/PVDF are made of thermoplastic materials (Polypropylene and PVDF) and are suitable for high corrosive liquids. Thanks to the innovative mag drive system, pumps model PP/PVDF reduce the risks of losses and the maintenance costs. The transmission of the motion occurs through magnetic joints without using mechanical seals. This guarantees the maximum safety and efficiency.
The pumped liquid has to be clean and without solids in suspension.

DESIGN OF MAGNETIC DRIVE CENTRIFUGAL PUMPS PP/PVDF
Magnetic drive pumps have a particular sealless design that is suitable to pump corrosive and dangerous liquids thanks to the high chemical resistance and absence of leakage and emissions. The structure is really simple so that the pump requires a very reduced maintenance with consequent save in terms of repairing and spare parts costs during the pump life. The external magnet placed on the drive shaft transmits the motion to the internal magnet connected to the impeller which rotates and moves the fluid through the pump.

MAIN FEATURES
Materials in contact with the liquid: casing and impeller PP/PVDF;
o-ring EPDM (standard for PP pumps) VITON (standard for PVDF pumps);
Static shaft: Al2O3 99%;
rotating bushing PTFEC;
High torque magnetic coupling
Flow 400LPM; Head 26 mlc;
Max temperature: PP 70°C – PVDF 90°C;
Max viscosity: 200 cSt;
Voltage: 3Phase 220V/380V/415V

Model Diameter(mm)

Impeller
Size




Specific
Gravity




Flow
(L/min)




Head
(m)


Power

Weight
(kg)


Inlet Outlet
MPDH-400 40 40 5 1.05 150 8.5 0.4kw, 2HP 11.5
MPDH-401 40 40 1.05 200 12 0.75kw, 2HP 18
MPDH-422 50 40 1.2 200 18.5 1.5kw, 2HP 23
MPDH-423 50 40 1.2 300 20.5 2.2kw, 2HP 25
MPDH-425 50 40 1.0 400 25.5 3.7kw, 2HP 47
MPDH-525 65 50 1.0 500 18.5 3.7kw, 2HP 48
