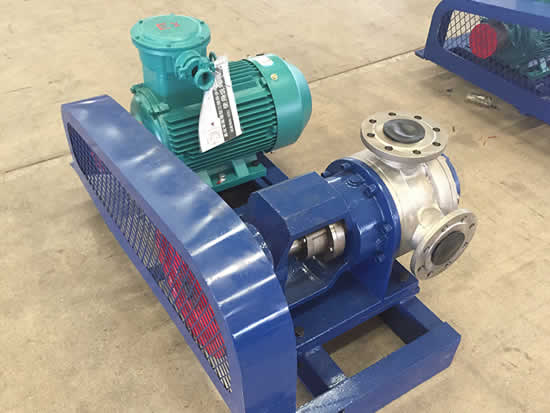

Nyp7.0 High Viscosity Internal Gear Pump with Safety Valve

  • item no.:

    NYP7.0/52/160/3
  • lead time:

    Customer Date
  • product orgin:

    china saiken pumps
  • shipping port:

    Tianjin China
  • payment:

    L/C Or T/T
  • color:

    Customer Color
  • description
Nyp Internal Gear Pump with Safety Valve

Model:NYP7.0/NYP3, Capacity:1.5-3 m³/h, Pressure:10 Bar, Speed:480--960 rpm, Power:2.2-3 KW, Efficiency:69 %,Port Size:1-1/2",Manufacturer:CHINA SAIKEN PUMPS

NYP series internal gear pump adopt USA Viking pump technology, it is used to transfer high viscosity liquid. Our NYP series internal gear pump have good quality with competive price.

Proper medium temperature: -10 centrigrade~200 centrigrade.
Proper medium viscosity: 1.0cSt~300, 000cSt
Capacity: 1.5m3/h_3m3/h
Discharge Pressure: 0.1Mpa-1.0Mpa
Packing: Marine wooden case
Brand: SAIKEN PUMPS

Model Capacity(L/H) Pressure(Mpa) Diameter(mm) Speed(rpm) Motor Power(KW)
NYP0.78 0.5 0.8 15 960 1.5
NYP3-1.0 2 1.0 40 587 3
NYP10-1.0 6 1.0 50 228 7.5
NYP10-1.0 8 1.0 50 303 7.5
NYP10-1.0 10 1.0 50 357 7.5
NYP10-1.0 12 1.0 50 475 7.5
NYP30-1.0 18 1.0 80 305 15
NYP30-1.0 22 1.0 80 359 15
NYP30-1.0 28 1.0 80 479 15
NYP50-1.0 50 1.0 150 128 37
NYP50-1.0 80 1.0 150 208 45
NYP50-1.0 100 1.0 150 253 55
