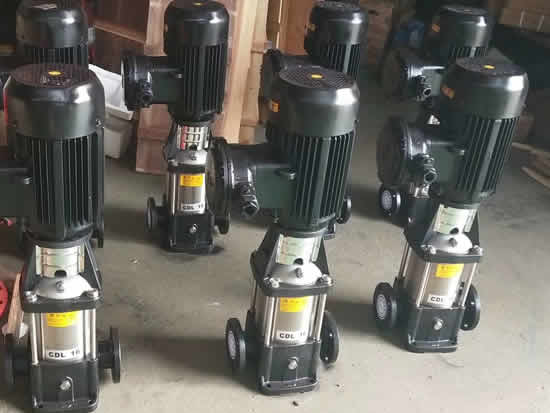

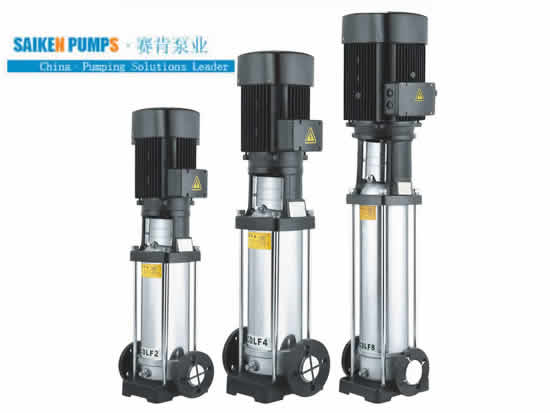

CDL/CDLF Vertical Multistage Centrifugal Pump

  • item no.:

    CDLF2CDLF8
  • lead time:

    Customer Date
  • product orgin:

    Botou Saiken Pumps Co.Ltd
  • shipping port:

    Tianjin China
  • payment:

    L/C Or T/T
  • color:

    Customer Color
  • description

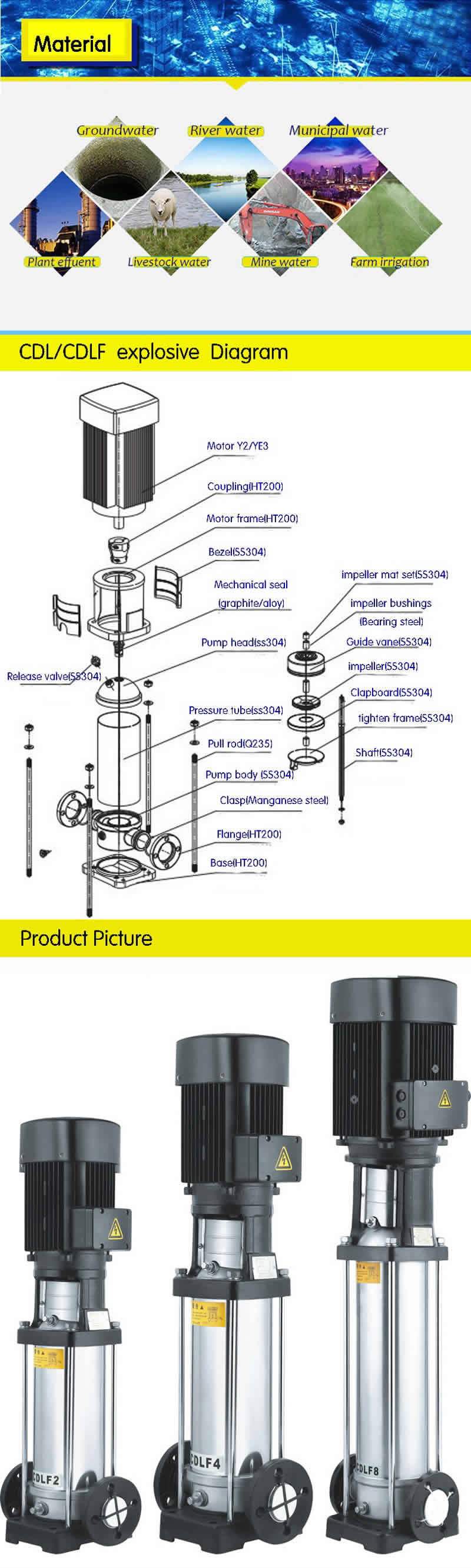

CDL/CDLF is a kind of vertical non-self priming multistage centrifugal pump, which is driven by a standard electric motor. The motor output shaft directly connects with the pump shaft through a coupling. The pressure-resistant cylinder and flow passage components are fixed between pump head and inlet & outlet section with stay bolts. The inlet and outlet are located at the pump bottom at the same plane. This kind of pump can be equipped with an intelligent pretector to effectively prevent it from dry-running, out-of-phase and overload.
Vertical stainless steel multistage pump,Vertical Multistage Centrifugal Pump,CDL/CDLF Vertical Multistage Centrifugal Pump,CDL/CDLF Vertical Multistage Pump Manufacturer Exporter & supplier in china

Pump:
1. Full-enclosed air-blast two-pole standard motor
2.  Protection class: IP55
3. Insulation class: F
4. Standard voltage: 50HZ:1X220-230/240V
                          3X200-220/346-380V
                          3X220-240/380-415V
                          3X380-415V

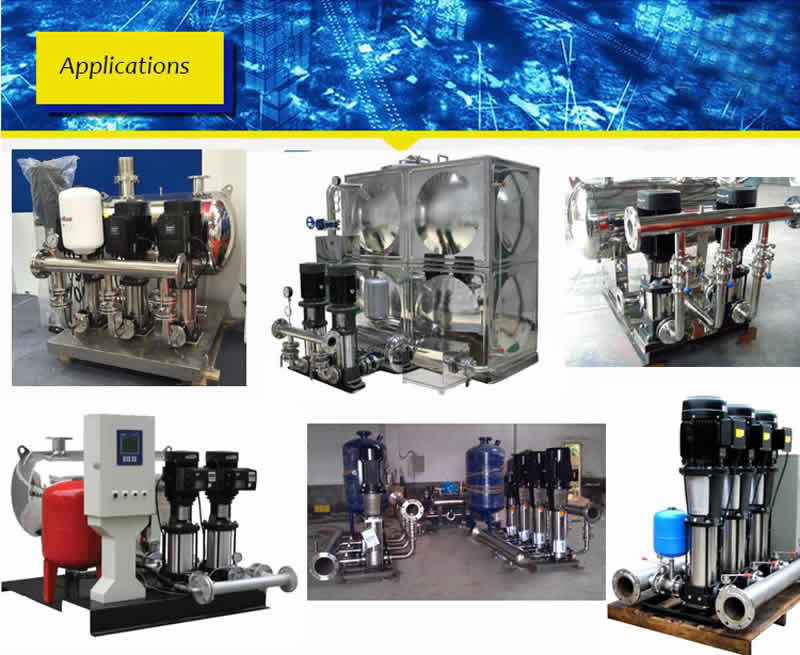

Saiken brand CDL/CDLF is a kind of multifunctional products. I can be used to convey various medium from tap water to industrial liquid at different temperature and with different flow rate and pressure. CDL type is applicable to conveying non-corrosive liquid, while CDLF is uitable for slightly corrosive liquid.

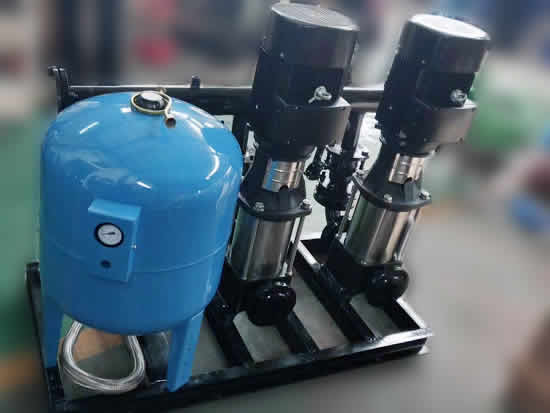

1. Water supply: Water filter and transport in Waterworks, boosting of main pipeline, boosting in high-rise buildings.
2. Industrial boosting: Process flow water system, cleaning system, high-pressure washing system, fire fighting system.
3. Industrial liquid conveying: Cooling and air-conditioning system, boiler water supply and condensing system, machine-associated purpose, acids and alkali.
4. Water treatment: Ultrafiltration system, reverse osmosis system, distillation system, separator, swimming pool.
5. Irrigation: Farmland irrigation, spray irrigation, dripping irrigation.

Vertical stainless steel multistage pump
CDL/CDLF Vertical Multistage Pump

Operation conditions
•Thin, clean, non-flammable and non-explosive liquid containing no solid granules and fibers.
•Liquid temperature:
 Normal temperature type: -15C~+70C,
 Hot water type: -15C~+120C
•Ambient temperature: up to +40C

Please contact us for more product details, email:fan@saikenpumps.com
tags :
Request a free quote

related products
  •  D DF DY DG Horizontal Multistag

    D DF DY DG Horizontal Multistage Centrifugal Pump for high-head pumping various kinds of liquids without solids,Can also transfer high temperature boiler water temperature up to 150℃...

  •  DG45-80 boiler feed water pump

    DG45-80 boiler feed water pump is a horizontal single-suction multi-stage centrifugal pumpmedium and low pressure feed pump are made of cast iron DG45-80*10 or 12 high pressure feed pump is made of cast steel or stainless steel...

  •  DG85-80 boiler feed pump

    DG85-80 boiler feed water pump is a horizontal single-suction multi-stage centrifugal pump,medium and low pressure feed pump are made of cast iron, DG85-80*10 high pressure feed pump is made of cast steel or stainless steel...

  •  960m Head Multistage Centrifuga

    China DG45–80x12 Multistage Centrifugal Pump Manufacturer and Supplier,head 960 m,Rated flow 45 m3/h,Multistage Centrifugal Pump Factory in china.saiken pumps manufactures high quality multistage centrifugal pump....

  •  Multi-stage Boiler Feed Water P

    China DG Multi-stage Boiler Feed Water Pump Manufacturer and Supplier,Boiler Feed Water Pump Factory in china.saiken pumps manufactures high quality multistage centrifugal pump,Buy Multi-stage Boiler Feed Water Pump contact us!...

  •  CDL/CDLF Vertical Multistage Ce

    CDL type is applicable to conveying non-corrosive liquid while CDLF is uitable for slightly corrosive liquid. Transfer Liquid temperature: Normal temperature type: -15C~+70C Hot water type: -15C~+120C •Ambient temperature: up to +4...

  •  Self-Balancing Multistage Pump

    MD(P) self-balancing multistage centrifugal pump for mining is mainly used for mining flow components and damaged parts are made of a wear-resistant material for conveying solid particles content is not more than15% temperature below 80 degrees cen...

  •  D Type MultiStage Centrifugal P

    Multistage centrifugal pump/D high pressure pumps used to deliver clear water without solid particles or liquid similar to clear water physically and chemically with the temperature range from 0°C~80°C(32°F~176°F)...

  •  DG Type Multistage Centrifugal

    DG Type Multistage Centrifugal Pump is suitable for transporting pure water and chemical natures similar to those of pure water,and is also applicable for small boiler water supply or transporting medium similar to hot water....

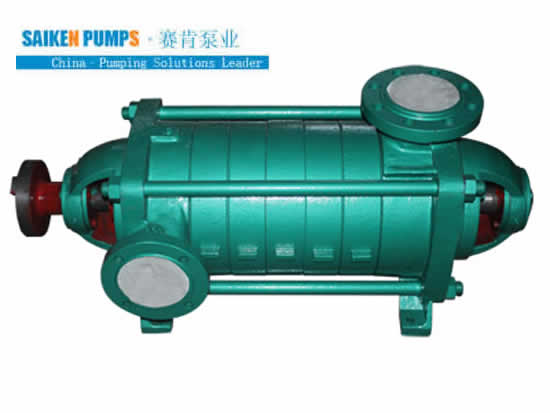

  •  MD Mining Horizontal MultiStage
