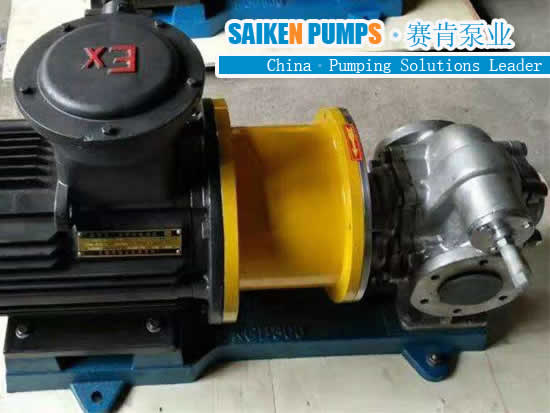

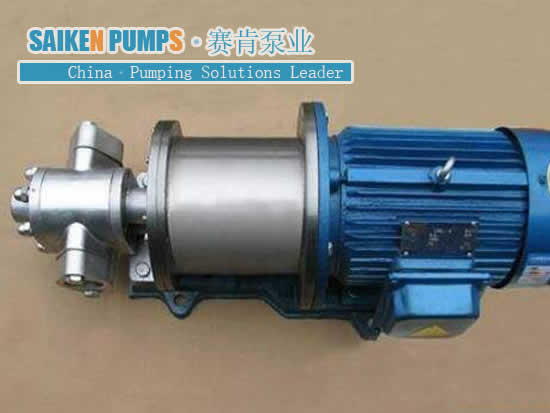

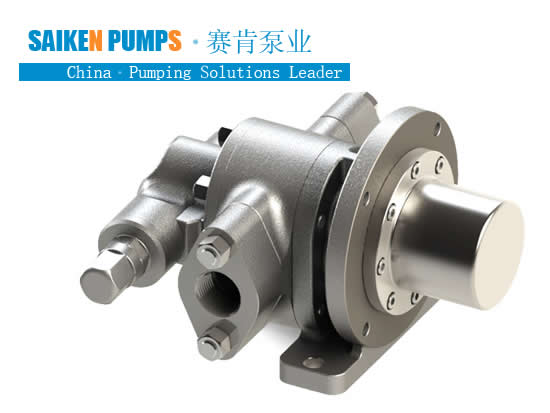

KCB-M magnetic drive gear pump
The external meshing low pressure gear pump is totally sealed, no leakage, environmental protection, energy saving and high efficiency. It is suitable for fluid conveying of 5-1500 CST viscosity without solid particles and long fibers in petrochemical, coating, paper and resin industries. It is suitable for transportation of toxic and harmful......

KCB-M magnetic drive gear pump uses:

It is suitable for fluid conveying of 5-1500 CST viscosity without solid particles and long fibers in petrochemical, coating, paper and resin industries. It is suitable for transportation of toxic and harmful, inflammable and explosive, polluting, volatile and heavy oil, mechanical oil, fuel oil, etc.

KCB-M magnetic drive gear pump features:
The external meshing low pressure gear system is totally sealed, no leakage, environmental protection, energy saving and high efficiency.
It is mainly composed of pump body, gear, shaft, magnetic drive part, safety valve and so on.
All parts in the pump are self lubricated by conveying medium.
Gear has high strength, hardness and wear resistance after heat treatment.
There is a reasonable pressure relief circuit in the pump to ensure that the gear is not trapped in the work.
Sliding bearings are made of suitable materials, which can withstand unbalanced radial hydraulic pressure of gears, have strong anti-pollution force, meet the requirements of non-lubricating chemical media, and have long service life.
Safety valve overload protection is provided. The full return pressure of safety valve is 1.5 times the rated pressure of the pump. It can be adjusted according to actual needs within the allowable discharge pressure range. When the discharge pressure exceeds the rated pressure of the pump, the safety valve automatically opens to ensure that the pump and motor will not be damaged by excessive pressure.
From the drive side, the pump rotates clockwise.

KCB-M magnetic drive gear pump application area:
It is widely used in oil field, oil refining, petrochemical industry, chemical products, chemical fertilizer, nuclear power, metallurgy, food, textile, medicine and refrigeration and other industrial systems to transport inflammable, explosive, toxic and harmful, corrosive medium without solid particles and medium that does not permit sealing and pollution, and is not suitable for transporting medium containing ferromagnetic materials. Qualit
