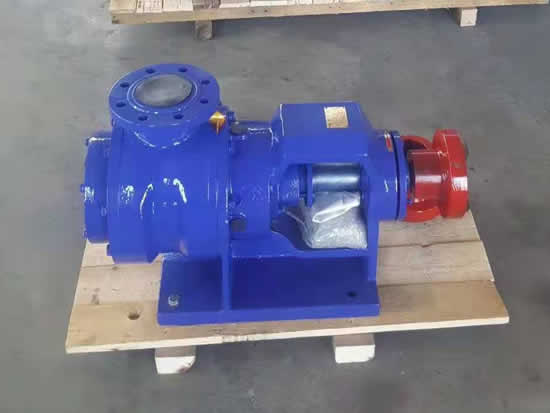

Internal gear pump for soap

item no.:
NYP111/52/160/7.0
lead time:
Customer Date
product orgin:
shipping port:
Tianjin China
payment:
L/C Or T/T
color:
Customer Color

contact now

description

Internal Gear Pump Technology:

Internal gear pump consists of a rotor ad idler. Liquid travels between them through “gear-within-a-gear” principle. Pump head forces the liquid to move out of discharge port. A seal is formed between the discharge and suction ports. This pushes liquid out of the discharge port.

Benefits of the internal gear pump:

Easy on maintenance with two moving parts and one stuffing part.

Works well for high viscosity liquids

Constant flow and is not affected by pressure

Operates well bidirectionally

NPSH requirements are quite low as compared to other pumps

Features of NYP Internal Gear Pump:

Flow upto 300 m3/hr

Pressure upto 10 bar

Viscosity upto 300,000 cst

Temp from -85 C to +350 C

Various Sealing options – Packing, Seal & mechanical seal

Broadest selection of port locations, configurations

Oil & Electrical Jacketed pump options

APPLICATIONS:

Fuels and lube oils

Alcohols and solvents

Asphalt, bitumen, tar

Resins and polymers, PU foam

Food industry (chocolate, starch)

Inks, pigments, paints

Soaps and surfactants

Glycol

Base oil, additives etc
