Electroplating Filter (Double Chamber Disc Or Cartridge Type In PP)

  • item no.:

    Cartridge Electroplating Filter
  • lead time:

    Customer Date
  • product orgin:

  • shipping port:

    Tianjin China
  • payment:

    L/C Or T/T
  • color:

    Customer Color
  • description
Double Chamber Disc Cartridge Type Electroplating Filter In PP

Filter housing is made of the pure PP/PVDF. The body is one of piece injected without welding. The stand are adopted the integrative mould and increase the intensity of the filter body. It can be resist on high temperature, high pressure, acid and alkali.

According to density and temperature of chemical solution on inject the pump body. Assemble with self-priming pump or magnet drive pump is depending on customers.

if use the leak-proof seal-less magnetic pump, it can totally avoid of the problems of dry running, leakage and the environment pollution.

Filter cartridge or filter bag can be replaced easy. The material of the pump is PVDF or FRPP. The Material of O-ring is VITON or EPT. Inlet and Outlet is PVC or PP. The screw joint can be hard pipe or nipple.

Using the configuration protection switch or use the buckle switch.
Widely used in electroplating , PCB, chemical engineering, medical treatment, water treatment, environmental protection and coating etc.

Filter media can be replaced conveniently. The filter provides high precision with wide area filtering high efficiency , easy to operate and clean.

Titanium(Ti) clamp set also can be provided if customer need it.

Standard accessories: union or flange(including packing and PVC screws). Purchase accessories: switch(including guard), foot valve, check valve, flow-seeing tube, in/outlet flexible, or filter cartridge, filter bag, pump accessories, such cover, impeller etc.

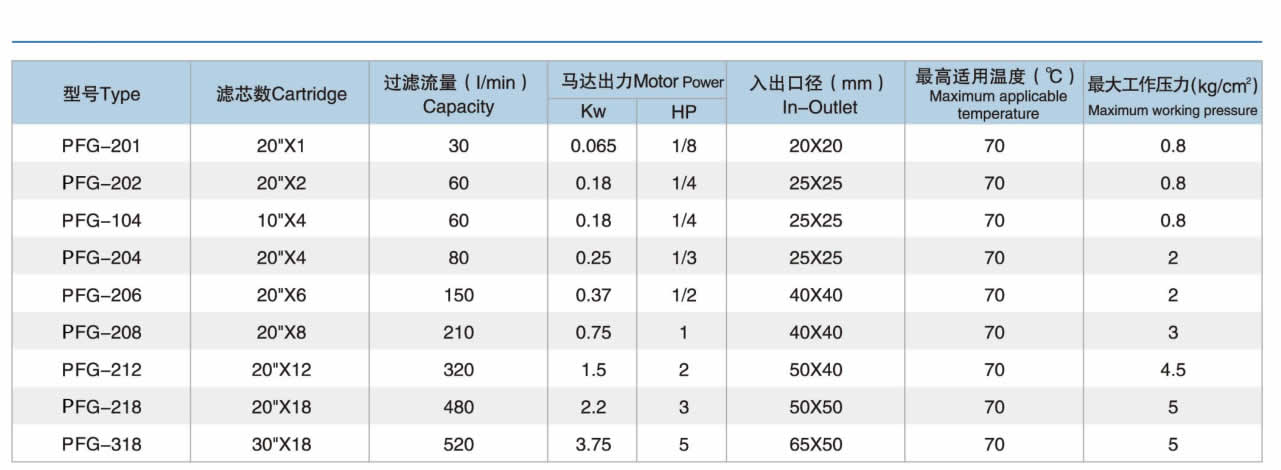

Series Specifications:

tags :
Request a free quote

related products

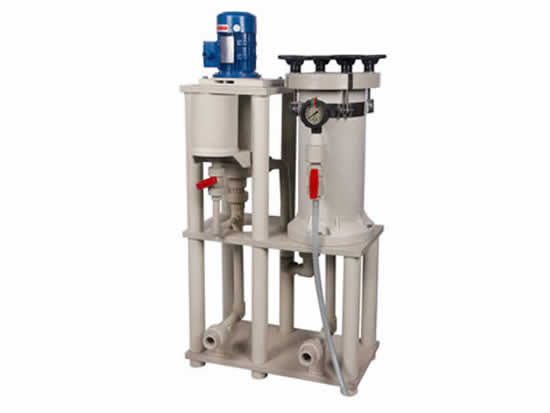

  •  Electroplating filter with magn

    Electroplating Filter housing is made of the pure PP or PVDF. The body is one of piece injected without welding, Use the leak-proof seal-less magnetic pump, it can totally avoid of the problems of dry running...

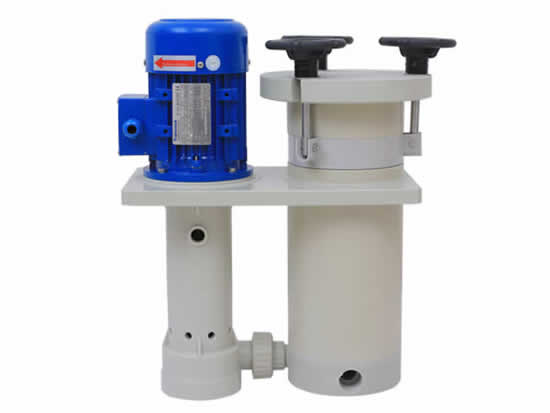

  •  Polypropylene Electroplating Fi
