BRY type Thermal Liquid Hot Oil Pump

  • item no.:

    BRY65-50-160
  • lead time:

    Customer Date
  • product orgin:

  • shipping port:

    Tianjin China
  • payment:

    L/C Or T/T
  • color:

    Customer Color
  • description

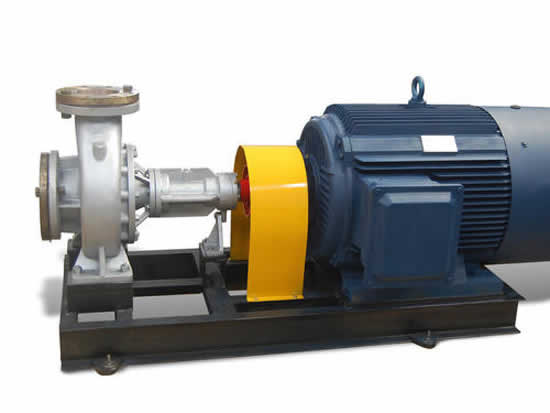

BRY type Thermal Liquid / Hot Oil Pumps

BRY type Hot Oil Thermal Liquid pumps is coupling type circulation pump for transferring the high temperature conduction oil. The entrance of the pump is axial suction, the exit is vertical center. Transferring medium is conduction oil without the particle and fiber.
∗ Single stage end suction centrifugal structure pump with high temperature oil sealing for hot oil with temperature ≤350°C.
∗ Air cooling structure, without additional cooling device. Self-lubricating bearing.
∗ Works as hot oil(thermal oil) system booster pump for boiler, bitumen, resin, spinning and printing, dyeing, plastic and rubber processing, foodstuff industry, etc.

Capacities to 2,200 GPM (500 m3/hr)
Heads to 425 feet (130 m)
Pumping temperatures to 650°F (343° C)
Working pressures to 350 PSIG (2,413 kPa)
Horizontal, end suction, back pull-out design
Centerline supported casing

Hot Oil/Thermal Liquid
Heat Transfer
OEM Applications
