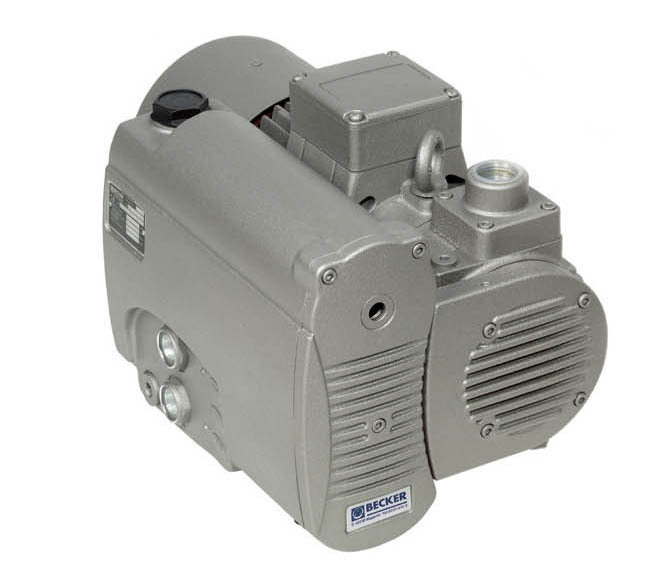

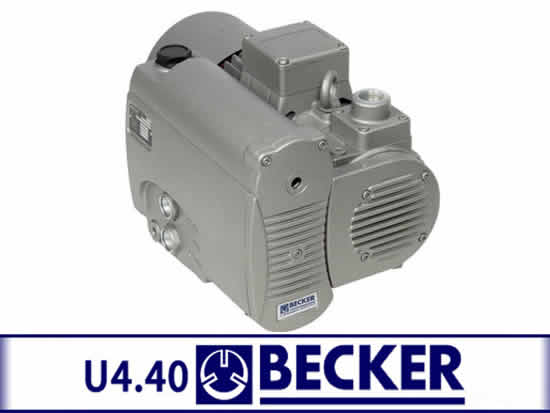

BECKER Vane Vacuum Pump U4.40

Capacity: 4 m³/h up to 630 m³/h

Vacuum: <0.1 mbar(abs)

Becker’s new generation of oil lubricated rotary vane vacuum pumps with a single shaft and direct drive, results in a sturdy and durable unit with low maintenance and running costs. A non-return valve and efficient oil separation are integrated into each vacuum pump. A float valve reliably regulates the return oil intake, even in high pressure ranges. The gas ballast lets a measured amount of fresh air enter the compression chamber. By mixing saturated intake air with unsaturated fresh air, condensing is kept to a minimum.



U 4 SERIES

Vacuum up to 29.9 in.Hg

Cool running

Quiet

Compact

Highly efficient (99.9+%)

Optional gas ballast

Optional water cooling

Low maintenance

Low operating costs
