Structure principle of magnetic drive pump：
Magnetic drive pump, referred to as magnetic magnetic, is a new type of sealless pump that applies the principle of permanent magnet transmission technology to realize the non-contact transmission of torque. Simply put, the difference from ordinary mechanical linkage is that the driven shaft does not have direct contact with the driving shaft. Therefore, the magnetic pump has no seal and can achieve zero leakage, and is especially suitable for conveying flammable, explosive, volatile, toxic, corrosive and valuable liquids. For this reason, magnetic pumps have been widely used in petroleum, chemical, electroplating, pharmaceutical, food, paper selection, printing and dyeing industries.

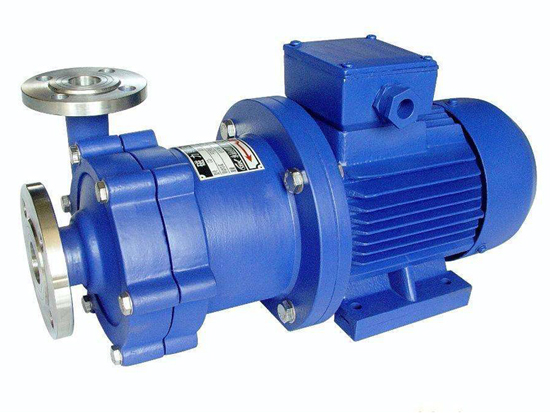

Structural principle of stainless steel high temperature magnetic pump: Magnetic drive pump is mainly composed of pump body, impeller, magnetic coupling, isolating sleeve, motor and so on. The motor is connected to the outer magnetic steel through a coupling. The impeller and the inner magnet are integrated by the impeller nut and the pump inner shaft, and are installed in a sealed body composed of a pump body and an isolation sleeve. The motor drives the outer magnet, and the outer magnet drives the inner magnet to rotate the impeller, so that the static seal replaces the dynamic seal to achieve no leakage of the medium.
