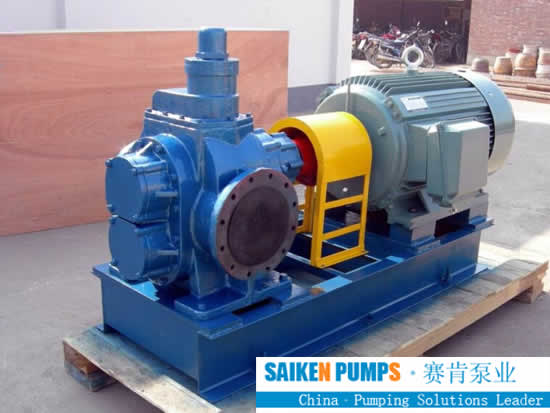

KCB 135 gear pump for diesel transfer

  • item no.:

    KCB135
  • lead time:

    Customer Date
  • product orgin:

    china saiken pumps
  • shipping port:

    Tianjin China
  • payment:

    L/C Or T/T
  • color:

    Customer Color
  • description
KCB 135 diesel transfer gear pump Specifications:

     Model        Capacity
        (L/min)
    Pressure
        (Bar)
    Speed
     (rpm)
     Caliber
      (inch)
    Power
     (kw)
        Efficiency
    KCB 135          135         3.3      960         2 "         2.2           44%
  Packing            details    330mm X 340mm X 360mm for bare shaft pump, with export standard wooden case

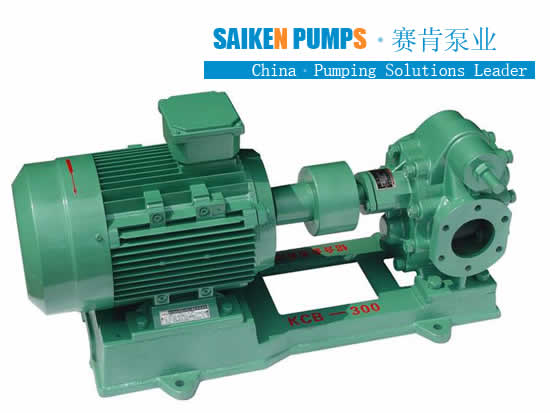

KCB Gear Pump Model:
* Large capacity range, up to 570 m3/h.
* MODEL: KCB 18.3,KCB 33.3,KCB 55,KCB83.3,KCB 135,KCB 200,KCB 300,KCB 483.3,KCB 633, KCB 960,KCB 1200,KCB 1600,KCB 2500,KCB 3800,KCB 5400,KCB 9600.

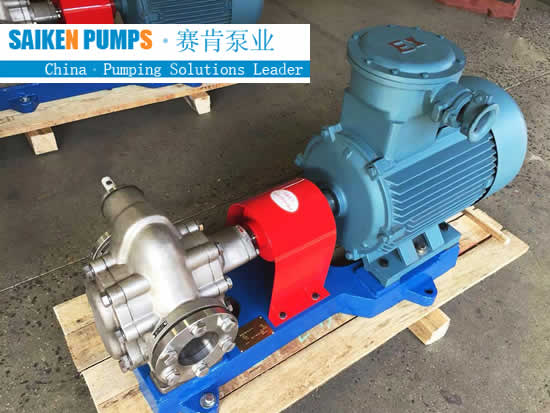

* Pump Body Material : Cast iron / stainless steel(304/316/316L)
* Gear Material : Steel, copper, stainless steel.
* Temperature: less than 180 degrees.(more than 180 degrees need customized)
* Reliable and easy to Maintain
* Good self-priming function.
* Self-lubrication by the pumped liquid.
* With built-in relief valve.
* Screw port or flange port for connection.
* Explosion-proof motor optional.

Applications:
KCB gear pump applies to delivering different types oil or equivalent liquid without solid particles and fibres at temperature below 200 C, and with the viscosity of 5-1500 cSt. They have also a
constant flow even if delivery pressure changes during operation. Internal fine tolerances make these pumps
usable only with clean fluids having some lubrication properties.
KCB series gear pump flow:18-9600L/min,Power:1.5KW-160KW, Caliber: 3/4"to 14",Max Pressure:14.5 Bar,it can be used for fuel oils,lubricating oil transfer,diesel,vegetable oil,Palm Oil,kerosene,biodiesel.Typical application of KCB gear pumps on board ship or vessel are supply of F.O., M.O., L.O., diesel oil, or even petrol, benzene and so on.

KCB gear pump model parameter:


Model Caliber
(Inch)
Flow
(L/min )
Pressure
(MPa )
Suction Lift
(m )
kcb gear pump
with Motor power
(KW )
KCB-18.3 3/4 18.3 1.45 5 1.5
KCB-33.3 3/4 33.3 1.45 5 2.2
KCB-55 1″ 55 0.33 5 1.5
KCB-83.3 1 1/2″ 83.3 0.33 5 2.2
KCB-135 2″ 135 0.33 5 4
KCB-200 2″ 200 0.33 5 4
KCB-300 3″ 300 0.33 5 5.5
KCB483.3 3″ 483.3 0.33 5 7.5
KCB483.3 3″ 483.3 1.0 5 11
KCB-633 4″ 633 0.28 5 11
KCB-960 4″ 960 0.3 5 18.5
KCB1200 6″ 1200 0.6 3 37
KCB1600 6″ 1600 0.6 3 45
KCB1800 8″ 1800 0.6 2.5 55
KCB2500 8″ 2500 0.6 2.5 75
KCB3800 10″ 3800 0.6 2 110
KCB5400 10″ 5400 0.6 2 110
KCB7600 14″ 7600 0.6 2 200
KCB9600 14″ 9600 0.6 2 250
