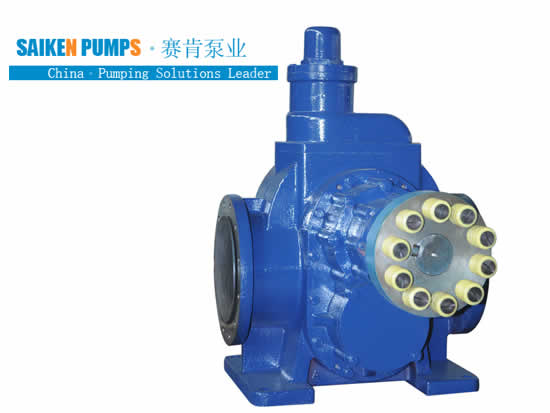

KCB 1600 lubrication oil gear pump

  • item no.:

    KCB1600 KCB 1600
  • lead time:

    Customer Date
  • product orgin:

    china saiken pumps
  • shipping port:

    Tianjin China
  • payment:

    L/C Or T/T
  • color:

    Customer Color
  • description
KCB 1600 lubrication oil gear pump Specifications:

     Model        Capacity
          (L/min)
     Pressure
         (Bar)
     Speed
     (rpm)
     Caliber
       (inch)
  Power
  (kw)
         Efficiency
  KCB 1600            1600         6      980           6 "  45             44%
Packing details                             715*350*876 Export standard wooden case




KCB Gear Oil Pump Model:

* Large capacity range, up to 570 m3/h.
* MODEL: KCB 18.3,KCB 33.3,KCB 55,KCB83.3,KCB 135,KCB 200,KCB 300,KCB 483.3,KCB 633, KCB 960,KCB 1200,KCB1600,KCB 2500,KCB 3800,KCB 5400,KCB 7200,KCB 9600.
* Pump Body Material : Cast iron / stainless steel(304/316/316L)
* Gear Material : Steel, copper, stainless steel.
* Temperature: less than 180 degrees.(more than 180 degrees need customized)
* Reliable and easy to Maintain
* Good self-priming function.
* Self-lubrication by the pumped liquid.
* With built-in relief valve.
* Screw port or flange port for connection.
* Explosion-proof motor optional.

Design Features:
* Coupled gear set with high quality carbon steel(2Cr 13 carbon steel as standard), stainless steel or bronze
    material gear is available.
* Each gear is fitted on a shaft supported by two internal quality bearings immersed in the pumped liquid.
   (small size in sliding bearing, model from KCB 18.3/1.45 to KCB-83.3/0.33, big size
   in rolling bearing, from model KCB-135/0.33 to KCB 9600/0.6). There are no external bearings.
* Pump has only one shaft penetration(the drive gear side) through the housing sealed with a mechanical seal,
   soft packing seal is available.

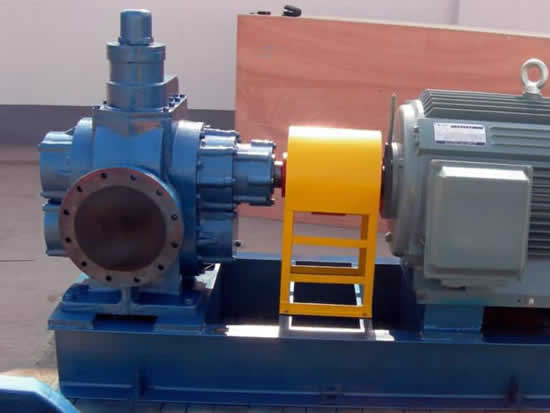

* Pumps are driven with electric motors through elastic coupling or spacer coupling.
* With built-in relief valve, setting value 1.5 times of discharge pressure, to protect pump and pipe system.
* Positive type pump, good self-priming function, suction head about 5 meter.
* Self-lubrication, no need extra lub. oil or grease.
* Both screw port(small size, model from KCB 18.3/1.45 to KCB-83.3/0.33), flange port(from model KCB-135/0.33 to KCB 9600/0.6)

Applications:
KCB  gear pump applies to delivering different types oil or equivalent liquid without solid particles and fibres at temperature below 200 C, and with the viscosity of 5-1500 cSt. They have also a
constant flow even if delivery pressure changes during operation. Internal fine tolerances make these pumps
usable only with clean fluids having some lubrication properties.
KCB series gear pump flow:18-9600L/min,Power:1.5KW-160KW, Caliber:3/4"to 14",Max Pressure:14.5 Bar,it can be used for fuel oils,lubricating oil transfer,diesel,vegetable oil,Palm Oil,kerosene,biodiesel.Typical application of KCB gear pumps on board ship or vessel are supply of F.O., M.O., L.O., diesel oil, or even petrol, benzene and so on.

KCB Gear Oil Pump Other Model Parameters:


Model Capacity Q Speed
r/min
Exhaust
Pressure
Mpa
(NPSH)r
m
Efficiency
η %
Motor
m3/h L/min Power
kw
Model
KCB-18.3 1.1 18.3 1400 1.45 5 44 1.5 Y90L-4
2CY-1.1/1.45
KCB-33.3 2 33.3 1420 1.45 5 44 2.2 Y100L1-4
2CY-2/1.45
KCB-55 3.3 55 1400 0.33 7 41 1.5 Y90L-4
2CY-3.3/0.33
KCB-83.3 5 83.3 1420 0.33 7 43 2.2 Y100L1-4
2CY-5/0.33
KCB-135 8 135 940 0.33 5 46 2.2 Y112M-6
2CY-8/0.33
KCB-200 12 200 1440 0.33 5 46 4 Y112M-4
2CY-12/0.33
KCB-300 18 300 960 0.36 5 42 5.5 Y132M2-6
2CY-18/0.36
KCB-483.3 29 483.3 1440 0.36 5.5 42 11 Y160M-4
2CY-29/0.36
KCB-633 38 633 970 0.28 6 43 11 Y160L-6
2CY-38/0.28
KCB-960 58 960 1470 0.28 6.5 43 18.5 Y180M-4
2CY-58/0.28
KCB-1200 72 1200 740 0.6 7 43 37 Y280S-8
KCB-1600 95 1600 980 45 Y280S-6
KCB-1800 112 1800 740 0.6 7.5 43 55 Y315S-8
KCB-2500 150 2500 985 75 Y315S-6
KCB-2850 170 2850 740 0.6 8 44 90 Y315L1-8
KCB-3800 230 3800 989 110 Y315L1-6
KCB-4100 245 4100 743 0.6 8 44 132 Y355M1-8
KCB-5400 325 5400 989 160 Y355M1-6
KCB-5600 330 5600 744 0.6 8 44 160 Y355M2-8
KCB-7600 460 7600 989 200 Y355M3-6
KCB-7000 420 7000 744 0.6 8 44 185 Y355L1-8
KCB-9600 570 9600 989 250 Y355L2-6
