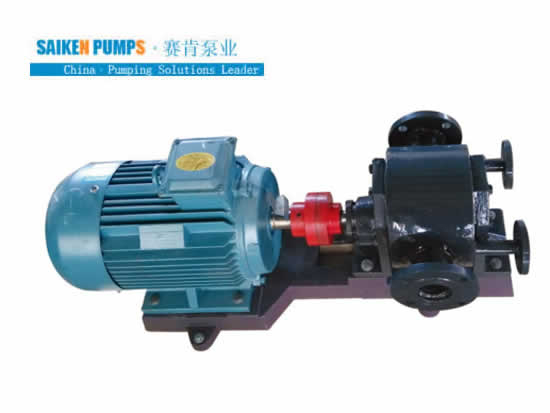

Jacketed Bitumen Gear Pump

  • item no.:

    HL18/0.6
  • lead time:

    Customer Date
  • product orgin:

    Botou Saiken Pumps Co.Ltd
  • shipping port:

    Tianjin China
  • payment:

    L/C Or T/T
  • color:

    Customer Color
  • description
Scope of application:
It applies to delivery the medium without causticity,not including solid particle and has solidifiability under the normal temperature. It especially used for the condition that the medium required to keep heat in outdoor installation at cold region. The temperature of medium could reach to 450°C. The viscosity is 5-1500CSt.


Usage:
It applies to deliver the dead oil, bitumen, glue, resin and scour etc.

Characteristics of structure:
The hollow sandwich and flange with inlet and outlet were set on the body of pump. It used in heating or cooling and keeping heat for liquid and pump when delivering the heat-conducting oil, steam and hot water

Model Flow Flow Pressure Suction Lift Power
L/mm m³/h Mpa m kw
HL 2/0.6 33.3 2 0.6 3 1.5
HL 3/0.6 50 3 0.6 3 2.2
HL 4/0.6 66.6 4 0.6 3 2.2
HL6/0.6 100 6 0.6 3 4
HL 8/0.6 133 8 0.6 3 (4)5.5
HL 12/0.6 200 12 0.6 3 7.5
HL 18/0.6 300 18 0.6 3 7.5
HL 29/0.6 483 29 0.6 3 11
HL 38/0.6 633 38 0.6 3 15
HL 58/0.6 960 58 0.6 3 18.5

























Botou Saiken Pumps Co., Ltd. is a professional manufacturer of Jacketed Bitumen Gear Pump design,supplier and exporter in china. We specialize in products for many kinds of liquids (such as water, gasoline, lubricant, diesel, acid liquid etc.) Such as Oil Pump, Gear Oil Pump, Lubricant Pump,Stainless Steel Gear Oil Pump, Bitumen Pump, Self Priming Pump, Hot-transfer Oil Pump, Screw pump, diaphragm pump,Centrifugal Pump etc. Our company can also produce qualified products according to customer's customization.
We welcome customers, business associations and friends from all parts of the world to contact us and seek cooperation for mutual benefits. If you are interested in our products, contact: fan@saikenpumps.com, We will send you reply at once.
