1.5 Inch 40mm Air Operated Aodd Pump

  • item no.:

    SK-40
  • lead time:

    Customer Date
  • product orgin:

    CHINA SAIKEN PUMP
  • shipping port:

    Tianjin China
  • payment:

    L/C Or T/T
  • color:

    Customer Color
  • description

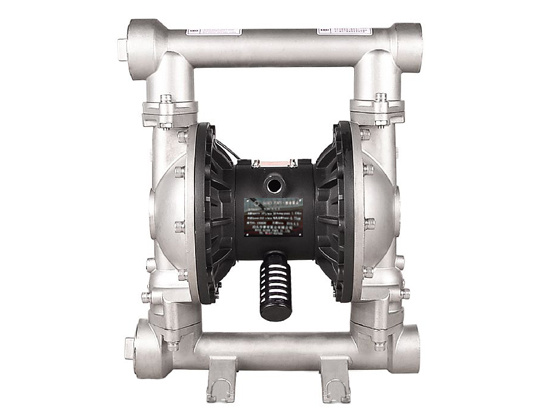

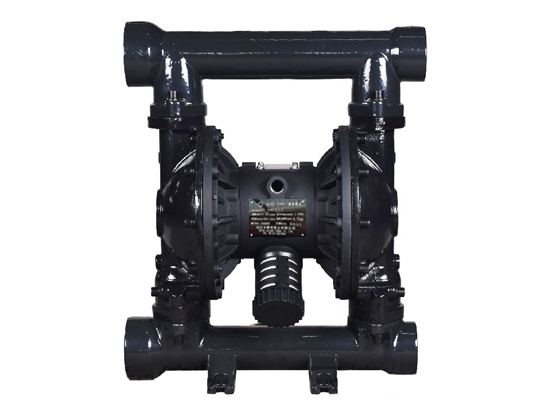

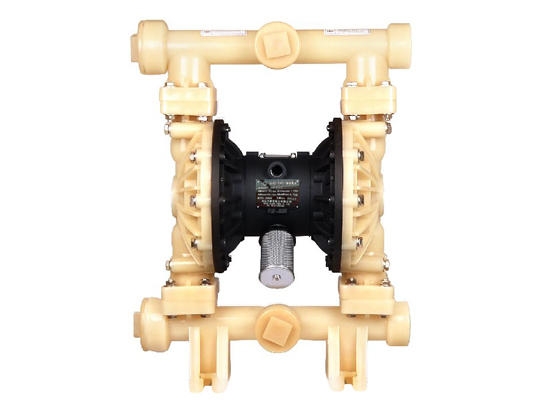

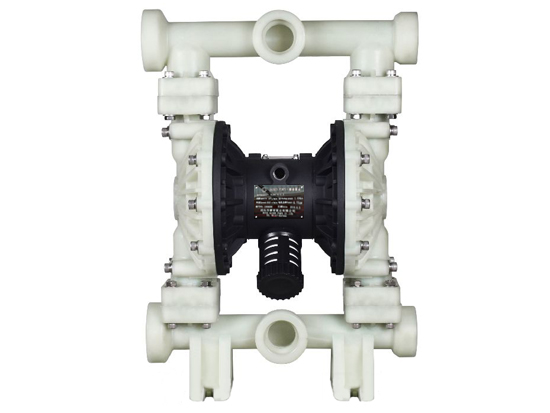

1.5 Inch 40mm Air Operated Aodd Pump

Aodd Pumps Made of Cast steel,Aluminum,PP (polypropylene), Stainless steel (SS304, SS 316, SS 316L), PVDF,Teflon.

AODD pumps also called air operated diaphragm pumps, are positive displacement pumps driven and powered by compressed air rather than an electric motor. The AODD pump design means that it can cope with pretty much any fluid from water to viscous slurries to 90% solids including large, shear sensitive particles without degrading them. Air operated double diaphragm pumps are able to benefit from variable flow or pressures just by adjusting the air power supply.

40mm Aodd Pump Air Operated  Specifications:

Model SK-40
Max.Flow                                     100gpm (378.5Lpm)
Max.Working Pressure                   120psi(0.84Mpa, 8.4bar)
Fluid Inlet Size                              1-1/2inch / 40 mm
Fluid Outlet Size                            1-1/2inch / 40 mm
Air Inlet Size                                 1/2 inch.bsp(f)
Max.Suction Height(dry suction)      18ft. (5.48m)
Max.Permitted Grain                       3/16 inch (4.8mm)
Max.Air Consumption                     32 scfm
Every Reciprocating Flow                0.5 gal (1.9L)
Max.Reciprocating Speed                276 cpm
