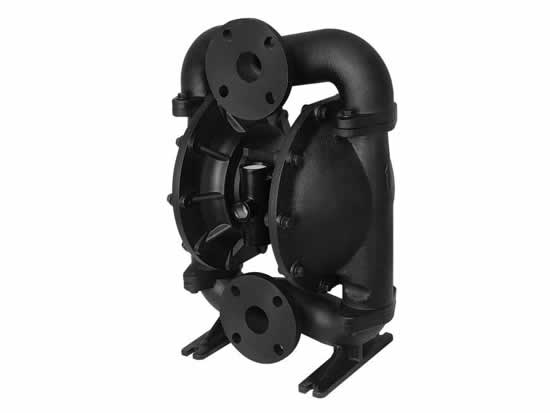

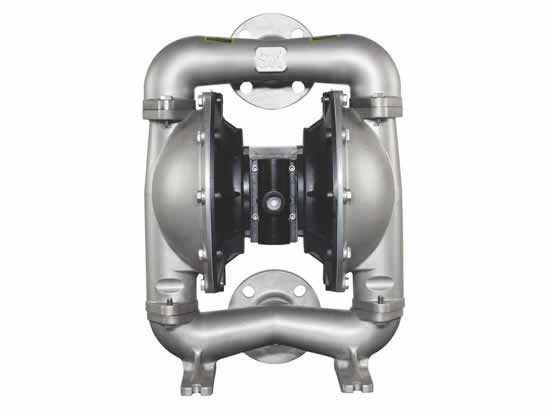

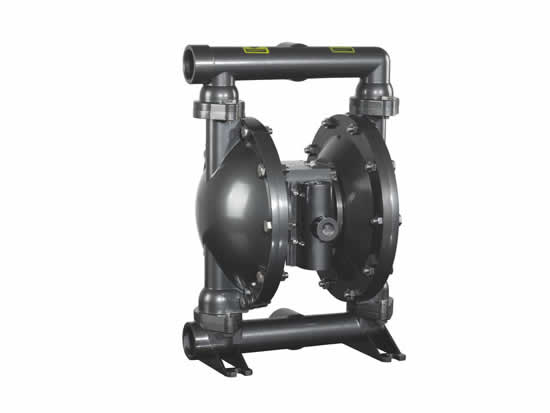

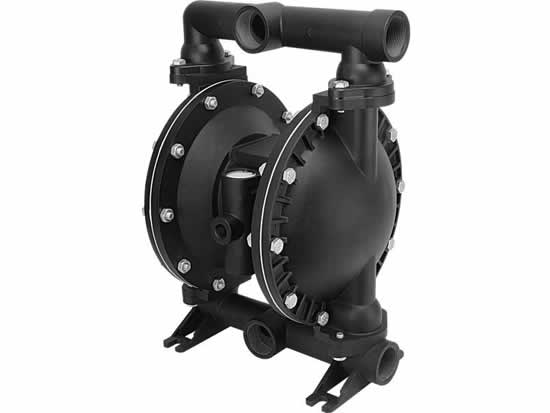

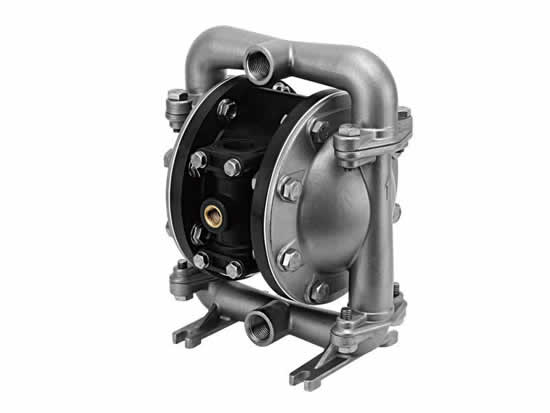

Pneumatic diaphragm pump for ink coating transfer

Pneumatic Diaphragm Pump is a new transport machinery , is currently one of the most innovative pump . Using compressed gas as a power source for a variety of corrosive liquid, with particles of liquid , high viscosity , volatile, flammable, poisonous liquid can be pumped optical exhaustion . There are four pneumatic diaphragm material: plastic , aluminum, castiron , stainless steel. Pneumatic diaphragm pumps were used nitrile rubber,neoprene , Viton ,Teflon , depending on the liquid medium , poly ethylene fortysix . To meet the needs of different users . Placed in a variety of special occasions , for pumping a variety of conventional pumps can not pump the media , have achieved satisfactory results.

Specification:


Model Inlet/outlet
Dia
Max. Flow Head Max. Suction stroke Max. Particle
Dia.
Max. Air Supply Pressure Max.Air Consumption
inch m3/h L/min m m mm kg/cm2 m3/min
SKQ-06/10 1/4 or 3/8 1.62 27 0-70 6.4 1.6 7 0.14
SKQ-15/20 1/2 or 3/4 3.42 57 0-84 7.6 2.5 8.4 0.56
SKQ-25 1 9.42 157 0-84 8 4 8.4 1.12
SKQ-40 1.5 21.48 358 0-84 8 5 8.4 2.24
SKQ-50 2 35.22 587 0-84 8 6 8.4 2.8
SKQ-80 3 63.6 1060 0-84 8 9.4 8.4 9.8
