High Temperature Resistant Centrifugal Pump Installer

Self-priming Magnetic Drive Pump

  • item no.:

    TMX
  • lead time:

    Customer Date
  • product orgin:

    CHINA SAIKEN PUMPS
  • shipping port:

    Tianjin China
  • payment:

    L/C Or T/T
  • color:

    Customer Color
  • description

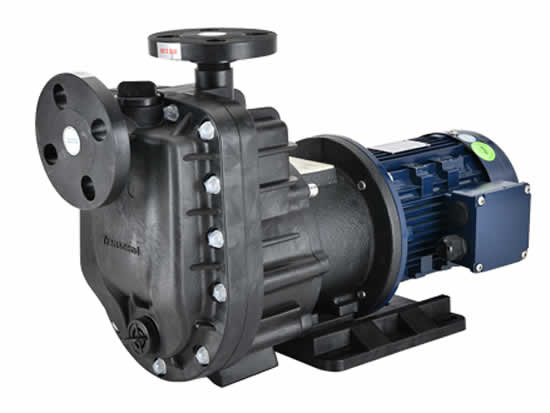

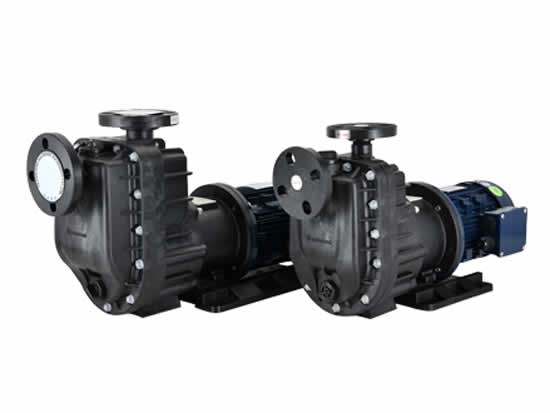

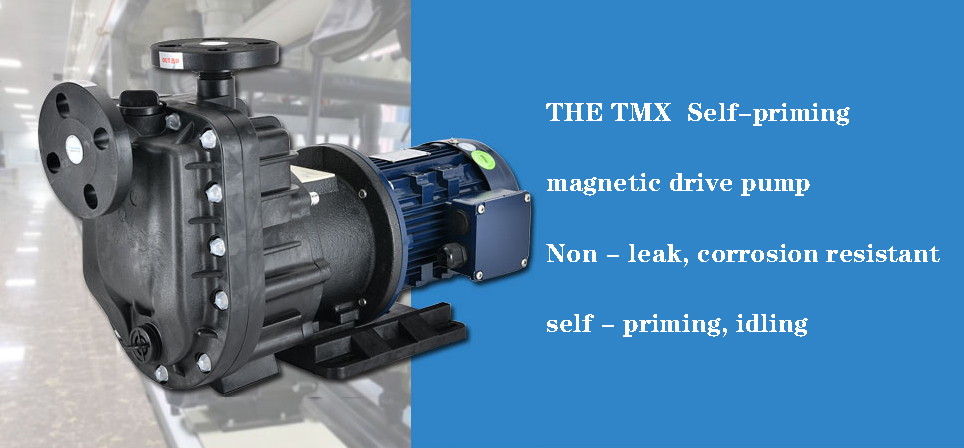

The TMX horizontal self-priming magnetic drive pump made from reinforced plastic.
Our original self-radiation structure (Patented) enhances resistance to dry running, cavitation,
and closed-discharge operation.
In addition, the use of standard motors extends the range of application.


Non - leak, corrosion - resistant, self - priming, idling

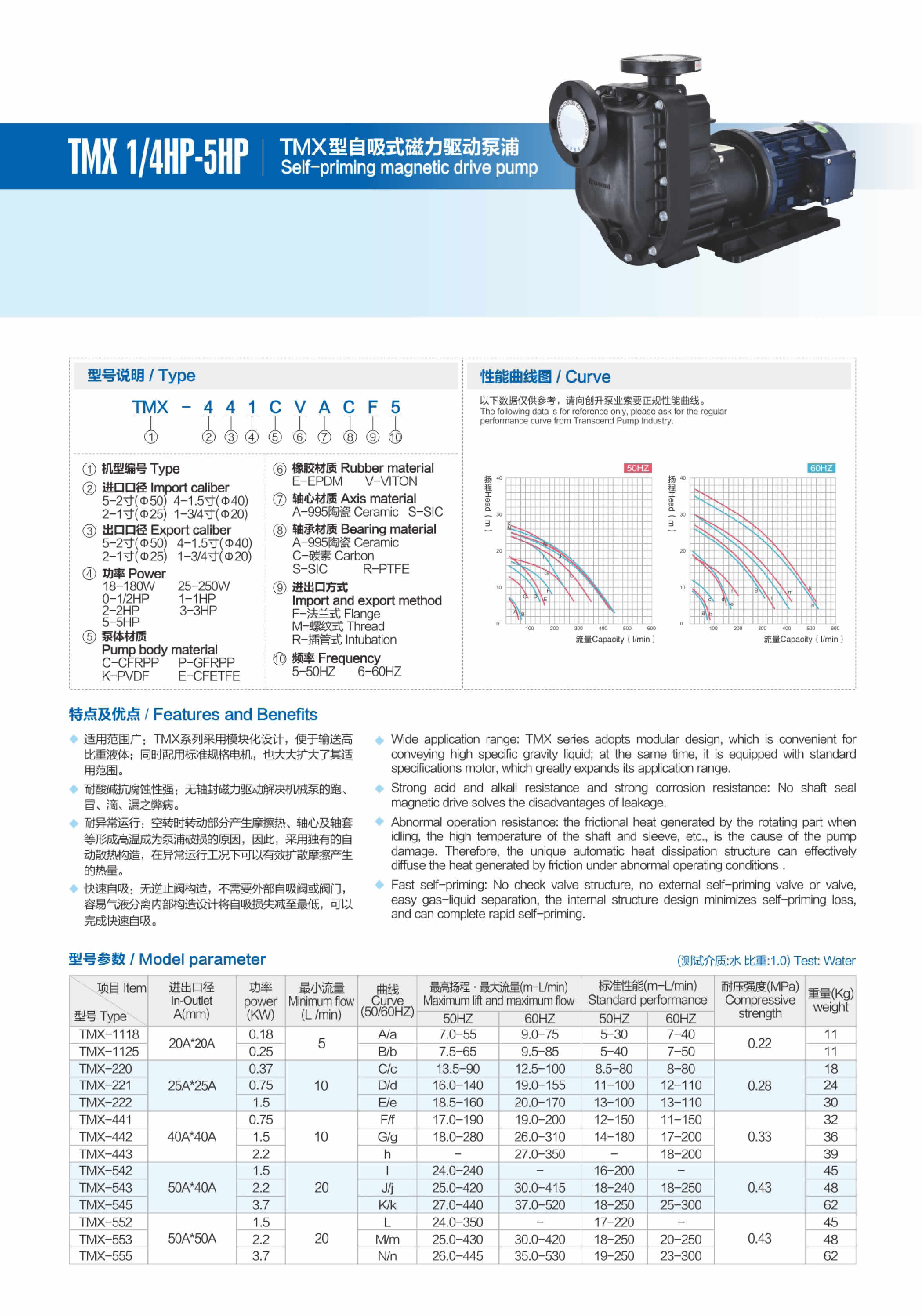

· product standard:(50Hz)
· pumping power:0.18-3.7kw
· full flow:55-445 L/min
· total head:7-26 m
· Main material:FRPP,PVDF
· Temperature Range:0~75℃(GFRPP),0~90℃(PVDF),0~100℃(ETFE)
· Products alias: self-priming magnetic pump, self-priming magnetic pump, self-priming magnetic drive pump, self-priming magnetic drive pump, etc
