Nyp Internal Gear Pump for High Viscosity Medium

  • item no.:

    NYP52/NYP111A
  • lead time:

    Customer Date
  • product orgin:

    china saiken pumps
  • shipping port:

    Tianjin China
  • payment:

    L/C Or T/T
  • color:

    Customer Color
  • description

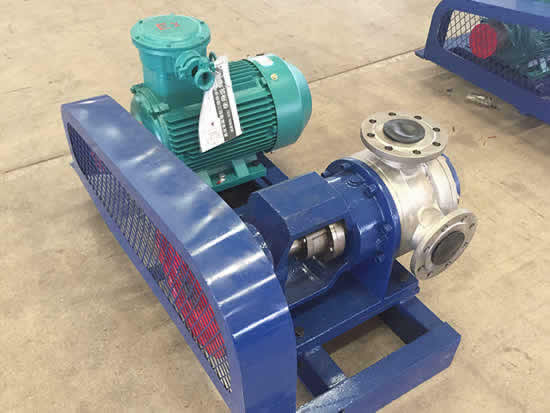

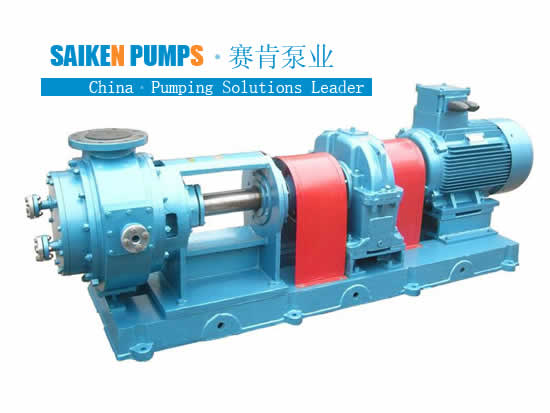

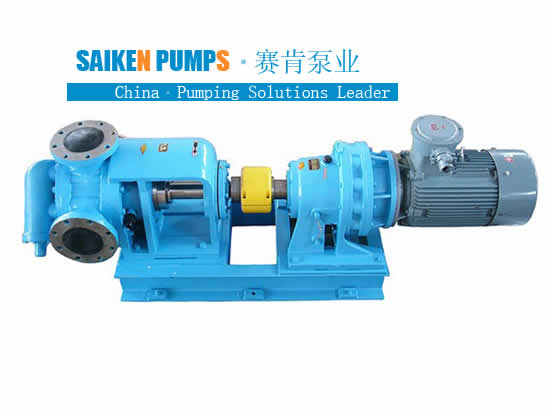

NYP internal gear pump for High viscosity Medium

NYP gear pump model: NYP0.78,NYP2.3,NYP7.0,NYP24,NYP52,NYP80,NYP111, NYP160,
NYP220,NYP320,NYP650,NYP727,NYP1670.Materials:cast iron, cast steel, stainless steel(304 316 316L).Ddesigned according to the different fields' requirements of petroleum ,chemical industry ,paint ,medicine ,foodstuff and so on.It widely applies to a variety of mediums with different property and viscosity because of special structure and selected different pump's materials.
Rotational speed: 85r/min-1450r/min
Swept volume: 0.78L/100rev-1670L/100rev
Capacity up to 200 m³/h
Max pressure: 145 PSI

Description of high Viscous Fluid Pump

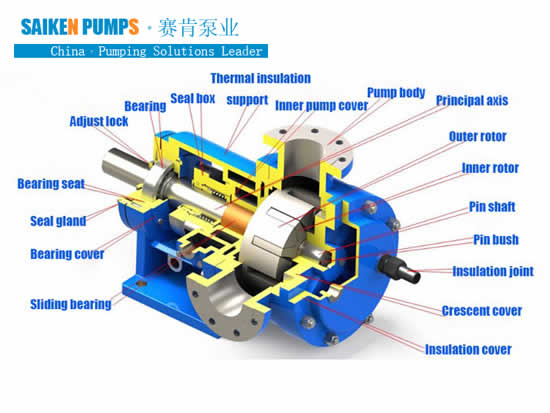

NYP Series Internal Gear Pump, a kind of positive displacement pump, makes a fluid move by trapping a fixed amount and forcing that trapped volume into the discharge pipe. The flow of pump only depends on the change of chamber volume and the change frequency, rather than the discharge pressure. While working, a pair of synchromesh gears drives a pair of rotors to simultaneously rotate at opposite directions. By doing so, the volume of pump has been changed; higher vacuum degree and discharge pressure have been achieved. This lobe pump is especially suitable to transfer hygiene-degree media and highly corrosive and viscous fluids.

Application Ranges of Viscous Fluid Pump
This heavy oil transfer pump has been widely used mainly in three kinds of media. (1) Fluids that are pure and have a certain degree of viscosity, such as lube oil and crude oil. (2) High-viscosity materials that contain no particles, like rubber, asphalt, paint, adhesives, dyes, lubricants, polyols, food and medicine. (3) High-temperature and high-viscosity polymers, like PA, PB, PC, PE, PS, HIPS, ABS, PP, PET and PVA.

Attractive Advantages of Nyp High Viscosity Internal Gear Pump
The viscous fluid pump body and cover are both good quality and highly precise thanks to modern process and advanced precise-casting techniques.

We provide two kinds of sealing design. One is mechanical sealing, noted for zero leakage and suitable for lubricant media. The other type is packing sealing whose attractive characteristics include good elasticity, self-lubrication, abrasion resistance and high chemical stability. Clients can choose according to working requirements.
