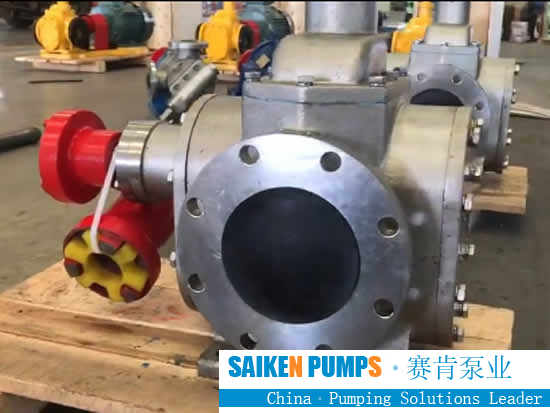

Gear pump, flow: 10m3/h, pressure: 0.6Mpa, suction vacuum height of 5 meters, caliber 65mm, with motor: Y132M1-6.
YCB arc gear pumps is a type of positive displacement pump. Two enclosed spaces are composed of two gears, a pump body, and front and rear covers. When the gears rotate, the volume of the space on the side of the gear disengagement becomes larger, forming a vacuum, and sucking in the liquid. , The volume of the space on the gear meshing side changes from large to small, squeezing the liquid into the pipeline. The suction cavity and the discharge cavity are separated by the meshing line of two gears. Transportable media: lubricating oil, engine oil, gasoline, diesel, edible oil, chemicals and other media with a viscosity of 1-1500cst.
