ZX Type Self-priming Centrifugal Pump

item no.:
40ZX4-30
lead time:
Customer Date
product orgin:
Botou Saiken Pumps Co.Ltd
shipping port:
Tianjin China
payment:
L/C Or T/T
color:
Customer Color

contact now

description

A.Product Overview

ZX series self-priming centrifugal pump stand out the advantage of simple structure, stable working, long life.

It need not bottom valve in the pipeline, it just needs to have amount of liquid in pump for self-priming before starting pump. So it predigests pipeline system and improves working condition.

Capacity(flow rate): 5-800m³/h

Head :12-60m

Self priming height:4.5-6.0m

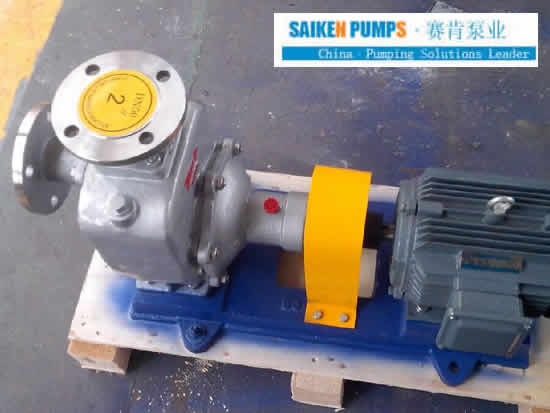

Stainless Steel self-priming pump,SS self-priming pump,ZX Type SS self-priming centrifugal pum Manufacturer Exporter & supplier in china

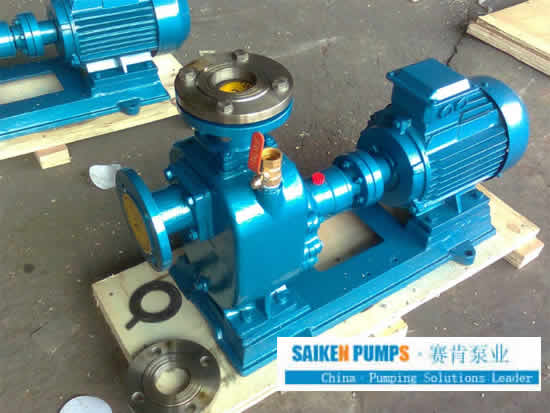

duplex stainless steel Material self-priming pump

duplex stainless steel Material self-priming pump

B.Application

1.It is used in environment protection, construction, fire protection, chemical industry , pharmacy, printing , electric power and etc.

2.It can spray by turning water into little drop for farm, garden etc.

3.It is suitable for clear water, sea water and chemical medium with acid and alkali and mushy slurry (viscosity ≤100 centipois,

consistency for solid can not exceed 30% of total medium.

4.It can be used to transport slurry to compressor and filter with compressor and filter.

C.Work Conditions

The pump can work properly and continuously under following operational conditions:

1 .Medium is not corrosive. Sand contents should be max.0.10% by volume and granular size should be max.0.20mm.

2.Medium temperature shouldn’t be over 40"C and PH should be6.5-8.5.

3.Power frequency should be 50Hz,single phase voltage 220v,three- phase voltage 380V,and voltage fluctuation should be 0.9-1.1 times than the rated.

4.Filling full water into pumps before using in order to eject air,otherwise the pump is hard to work.

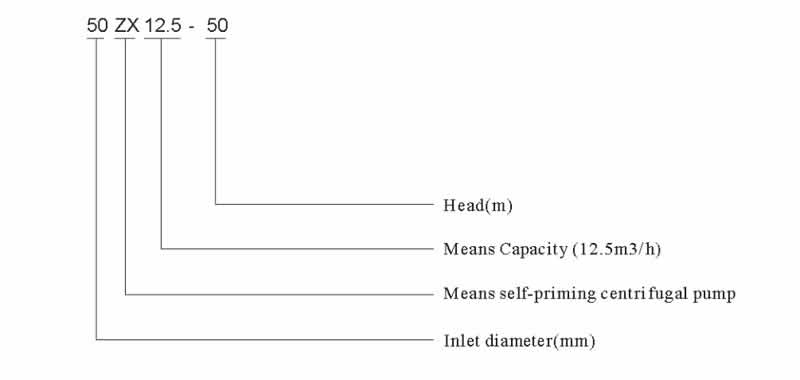

D. Specification of a model:

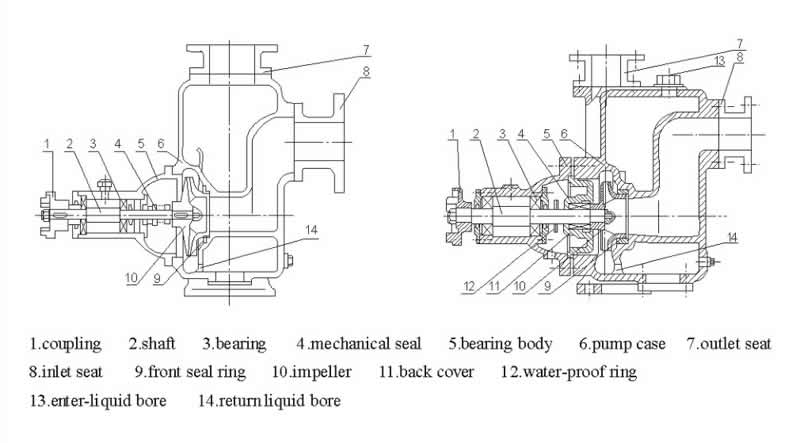

E. Structural drawing:

Stainless Steel self-priming pump

Specification:

Model	Capacity		Head	Suction	Self priming	Power	Caliber mm
Model	m3/h	L/S	m	m	min/5m	KW	Inlet	Outlet
25ZX3.2-20	3.2	0.9	20	6.5	1.9	0.75	25	25
25ZX3.2-32	3.2	0.9	32	6.5	1.8	1.1	25	25
40ZX6.3-20	6.3	1.8	20	6.5	1.9	1.1	40	32
40ZX10-40	10	2.8	40	6.5	1.5	4	50	40
50ZX15-12	15	4.2	12	6.5	2.4	1.5-2	50	50
50ZX18-20	18	5	20	6.5	1.9	2.2	50	50
50ZX12.5-32	12.5	3.5	32	6.5	1.5	3	50	50
50ZX20-30	20	5.6	30	6.5	1.5	4	50	50
50ZX14-35	14	3.9	35	6.5	1.5	4	50	50
50ZX10-40	10	2.8	40	6.5	1.5	4	50	50
50ZX12.5-50	12.5	3.5	50	6.5	1.4	5.5	50	50
50ZX15-60	15	4.2	60	6.5	1.3	7.5	50	50
50ZX20-75	20	5.6	75	6.5	1.3	11	50	50
65ZX30-15	30	8.3	15	6.5	2	3	65	65
65ZX25-32	25	6.9	32	6	1.5	5.5	65	65
80ZX35-13	35	9.7	13	6	3.4	3	80	80
80ZX43-17	43	12	17	6	1.8	4	80	80
80ZX40-22	40	11.1	22	6	1.9	5.5	80	80
80ZX50-25	50	13.9	25	6	1.5	7.5	80	80
80ZX50-32	50	13.9	32	6	1.5	7.5	80	80
80ZX60-55	60	16.7	55	6	1.5	18.5	80	80
80ZX60-70	60	16.7	70	6	1.2	22	80	80
100ZX100-20	100	27.8	20	6	1.8	11	100	100
100ZX100-40	100	27.8	40	6	1.8	22	100	100
100ZX100-65	100	27.8	65	6	1.8	30	100	100
100ZX70-75	70	19.4	75	6	1.8	30	100	100
150ZX170-55	170	47.2	55	6	1.8	45	100	100
150ZX170-65	170	47.2	65	6	1.3	55	150	150
200ZX280-63	280	77.8	63	6	1.5	90	200	200
200ZX350-65	350	97.2	65	6	1.5	110	200	200
250ZX550-32	550	152.8	32	6	2	137	250	250
