ZCQ plastic lining Self-priming Magnetic pump

  • item no.:

    ZCQ65-50-160
  • lead time:

    Customer Date
  • product orgin:

    CHINA SAIKEN PUMPS
  • shipping port:

    Tianjin China
  • payment:

    L/C Or T/T
  • color:

    Customer Color
  • description

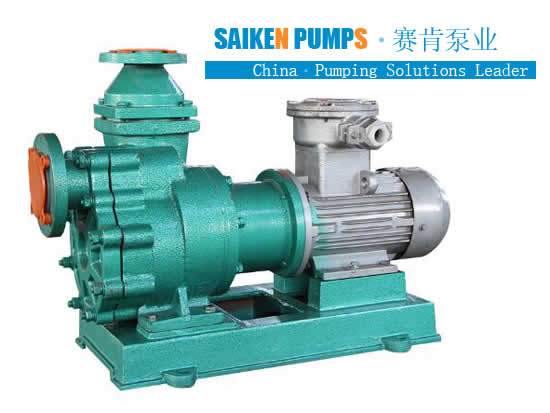

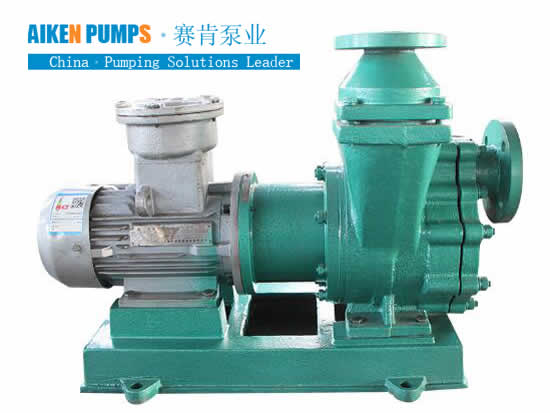

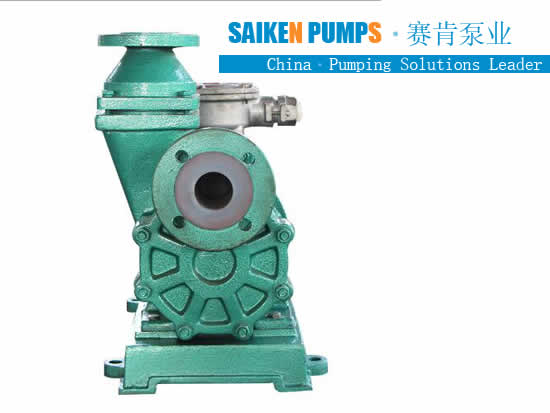

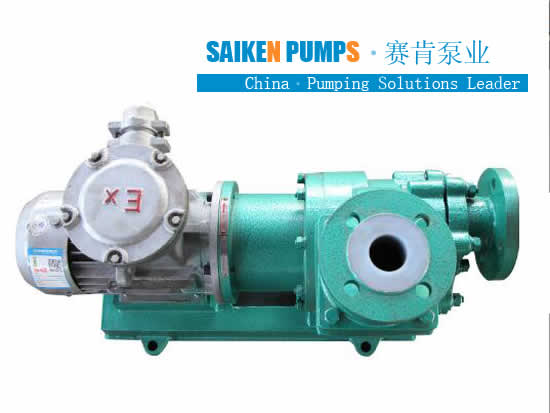

ZCQ plastic lining Self-priming Magnetic pump
The ZCQ series self-priming magnetic pump combines all the excellent characteristics of the magnetic pump, and the biggest advantage is self-priming. The general self-priming height can reach 2-4 meters. The filling combines all the advantages of the self-priming pump and the magnetic pump, and it has the self-priming function. The shaft seal was removed and the leakage was completely eliminated by magnetic coupling indirect transmission.
China saiken pumps fluorine plastic lining magnetic pump main parameters:
Applicable medium: Transportation of Acid-base and Organic solvent at -20-90 ℃

Flow: 6.3m³/h-60m³/h
Head: 20m-40m
Power: 1.5kw-18.5kw

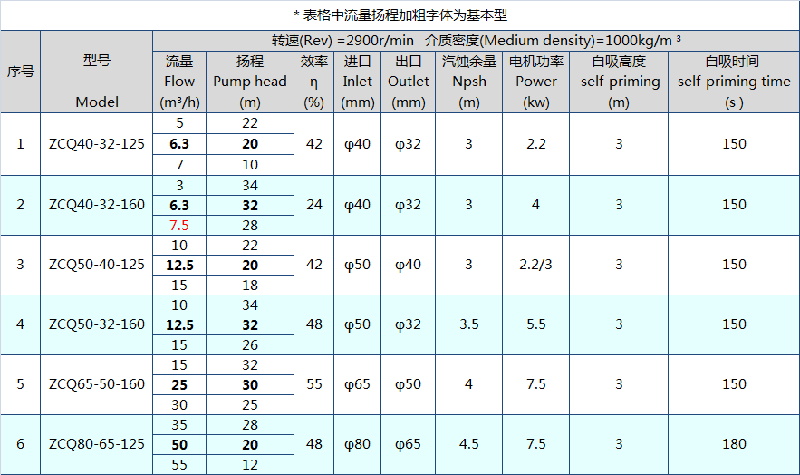

Product Parameter:
ZCQ fluorine plastic lining magnetic pump
