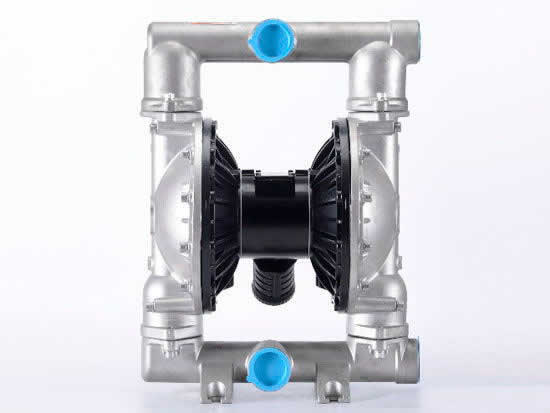

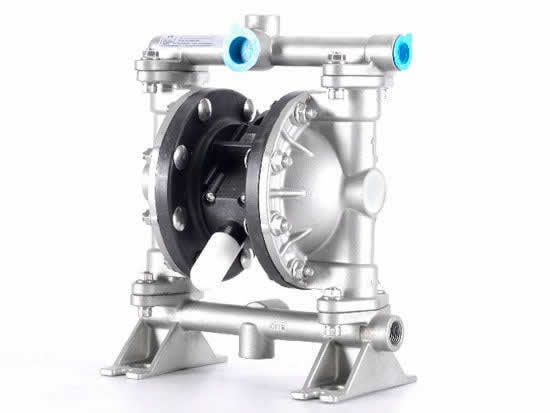

STAINLESS STEEL AIR DRIVEN DOUBLE DIAPHRAGM PUMP

  • item no.:

  • lead time:

    Customer Date
  • product orgin:

  • shipping port:

    Tianjin China
  • payment:

    L/C Or T/T
  • color:

    Customer Color
  • description
Stainless Steel Air Driven Diaphragm Pump Pneumatic for powder



1. Air Driven Diaphragm Pump Description

1. Double Diaphragm Pump AODD Pump Rubber Diaphragm for Pump for Food& Chemical, Chemical Resistant Diaphragm Pump is the new kind of transportation machine, adopting compress air, smoke and industry exhaust gas as power source.

2. It has two diaphragms, the compressed air come to the pump body to drive the pump in the constant action of sucking and releasing, so it can pump the liquids easily by this principle. Also it is very safe in dangerous environment since it has no electric motor.



Air Driven Diaphragm Pump Parameters

Item Description Unit Reference Figure
1 Maximum air inlet pressure Mpa 0.83
2 Maximum flow rate L/Min 567
3 Maximum lift M 70
4 Maximum outlet pressure bar 8.3
5 Weight kg 35
6 Noise level db <70


Air Driven Diaphragm Pump Applicable industries:

Used for ink printing machine, gravure printing, flexo printing and composite glue machine and the liquid with particle, all kinds of the cycle of flammable liquid delivery system.



tags :
Request a free quote

related products

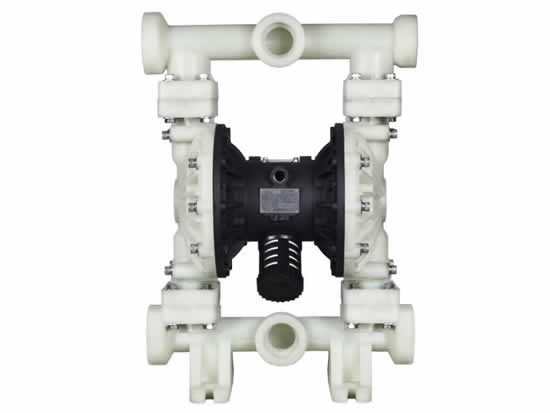

  •  Polypropylene Aodd Pump for Che

    Air Operated Double Diaphragm Pump ( AODD Pump ) Manufacturers Exporters In CHINA. Pump made of Ductile iron(SG iron)Cast steel aluminum stainless steel (SS304 SS316 SS316L) polypropylene(PP plastic) PVDF; Pump inlet / outlet:3/8 ; 1...

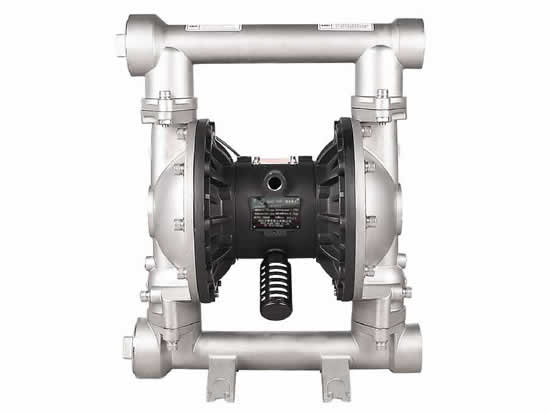

  •  2 Inch 50mm Air Operated Aodd P

    2 Inch 50mm Air Operated Aodd Pump Aodd Pumps Made of Cast steel,Aluminum,PP (polypropylene) Stainless steel (SS304 SS 316 SS 316L) PVDF,Teflon.Max.Flow 100gpm (378.5Lpm),Fluid Inlet Size 2inch / 50 mm...

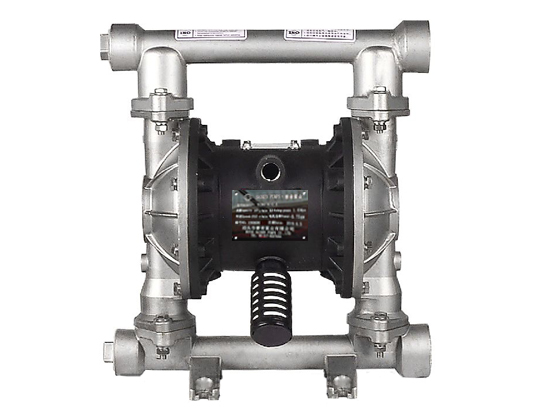

  •  1.5 Inch 40mm Air Operated Aodd

    1.5 Inch 40mm Air Operated Aodd Pump Aodd Pumps Made of Cast steel,Aluminum,PP (polypropylene) Stainless steel (SS304 SS 316 SS 316L) PVDF,Teflon.china Aodd Pump exporter...

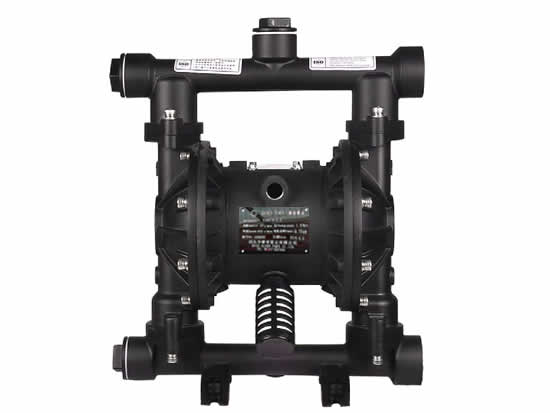

  •  32mm Air Operated Aodd Pump

    32mm Air Operated Aodd Pump Aodd Pumps Made of Cast steel,Aluminum,PP (polypropylene) Stainless steel (SS304 SS 316 SS 316L) PVDF,Teflon. AODD pumps also called air operated diaphragm pumps in china....

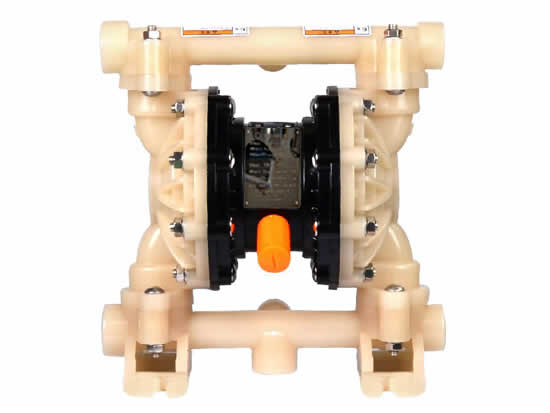

  •  25mm Air Operated Aodd Pump

    25mm (1 inch ) Air Operated Aodd Pump Aodd Pumps Made of Cast steel,Aluminum,PP (polypropylene) Stainless steel (SS304 SS 316 SS 316L) PVDF,Teflon.1" AODD pump ex-factory price in china...

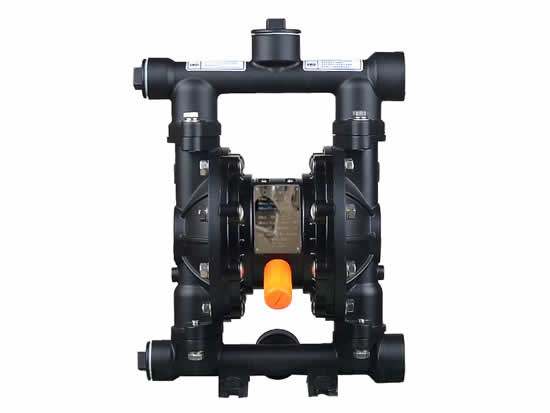

  •  20mm Air Operated Double Diaphr

    20mm Air Operated Aodd Pump,Aodd Pumps Made of Cast steel,Aluminum,PP (polypropylene) Stainless steel (SS304 SS 316 SS 316L) PVDF,Teflon....

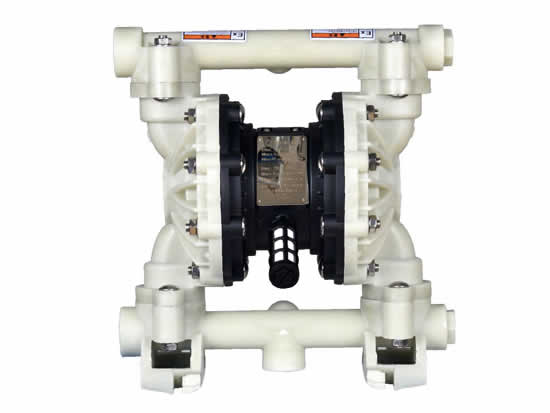

  •  15mm Pneumatic diaphragm AODD P

    15mm 1/2 inch Air Operated Double Diaphragm AODD PUMP,Aodd Pumps Made of Cast steel,Aluminum,PP (polypropylene) Stainless steel (SS304 SS 316 SS 316L) PVDF,Teflon. AODD pumps factory price in china....

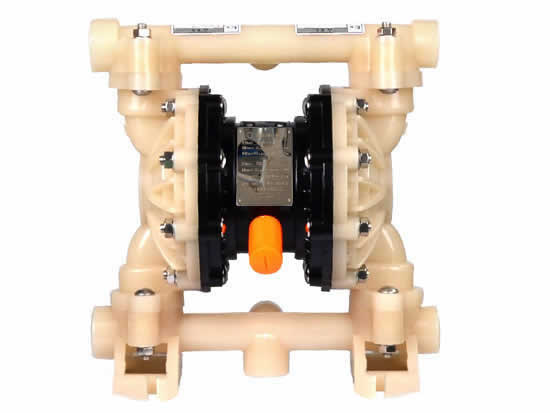

  •  10mm aerodynamic double diaphra

    10mm aerodynamic double diaphragm AODD PUMP,Aodd Pumps Made of Cast steel,Aluminum,PP (polypropylene) Stainless steel (SS304 SS 316 SS 316L) PVDF,Teflon.AODD pumps manufacturer from China....

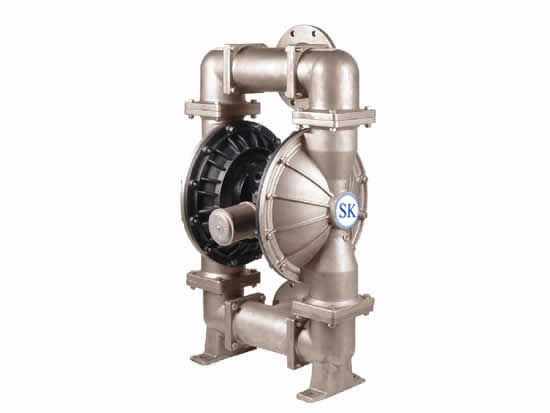

  •  4 Inch 100mm Aodd Pump Air Oper

    4 Inch 100mm diaphragm pump manufacturer.Aodd Pumps Made of Cast steelAluminumPP (polypropylene) Stainless steel (SS304 SS 316 SS 316L) PVDFTeflon..Max.Flow 150GPM (568LPM)...

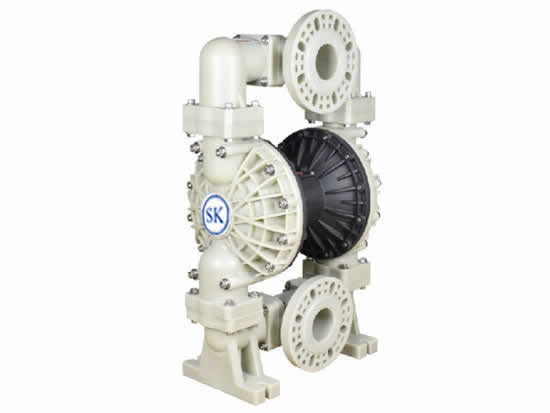

  •  3 Inch 80mm Aodd Pump Air Opera
