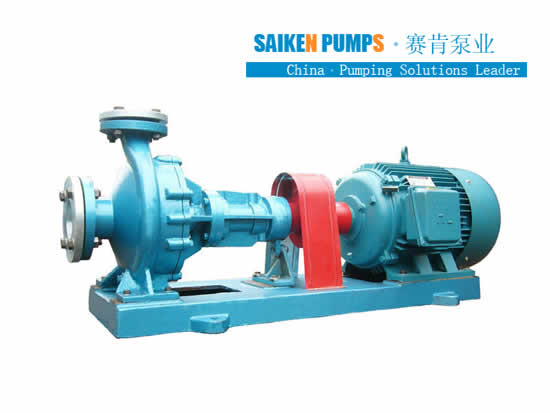

High Temperature Thermal Oil circulating Pump

  • item no.:

    65-50-160
  • lead time:

    Customer Date
  • product orgin:

    CHINA BOTOU SAIKEN PUMPS CO.LTD
  • shipping port:

    Tianjin China
  • payment:

    L/C Or T/T
  • color:

    Customer Color
  • description
High Temperature Thermal Oil circulating Pump Specification:
Manufacturer; CHINA SAIKEN PUMNPS
Flow Capacity:1-200m³/h
Temperature:-20-350 degrees
Head:10-125m

High Temperature Hot Oil Transfer Pump Advantage:
1.Transfer weakly corrosive high temperature liquid without solid particles
2.Soft sealing, good thermal adaptability
3.Reliable sealing without leakage
4.No additional cooling equipment, low operating costs
5.High performance, high efficiency, small size, low noise

Application:
1.Petroleum and chemical industry:polymerization,condensation,distillation,distillation and fusion
2.Oil industry:fatty acid distillation,fat decomposition,fat,etc.
3.Synthetic fiber industry:polymerization,spinning,stretching,etc.
4.Textile printing and dyeing industry:heat setting,drying,hot melt dyeing,etc.
5.Plastic and rubber industry:hot-rolling,extrusion and vulcanization molding etc.
6.Paper industry:drying,corrugated processing,etc.
7.Wood processing:plywood and fiber type.
8.Construction industry:asphalt heating

Model specification:

Model Flow Capacity Head(m) Shaft Power(kw) Efficiency(%) Speed
(r/min)
Motor
m3/h KW Model
20-20-100 1 20 0.09 26 2800 0.75 Y80M1-2
20-20-125 1.5 22 0.22 30 0.75 Y80M1-2
25-25-160 3 27 0.53 30 2900 1.5 Y90S-2
32-32-160 6 28 0.85 50 1.5 Y90S-2
40-25-160 10 28 1.72 45 2.2 Y90L-2
50-32-160 12.5 30 1.90 57 3 Y100L-2
50-32-200 18 40 3.92 50 5.5 Y132S1-2
50-32-200A 16 32 3.35 42 4 Y112M-2
50-32-250 12.5 80 6.2 44 11 Y160M1-2
50-32-250A 10 50 6.00 39 7.5 Y132S2-2
65-50-160 20 32 3.17 55 5.5 Y132S1-2
65-40-200 30 48 6.3 62 7.5 Y132S2-2
65-40-200A 25 35 4.0 59 5.5 Y132S1-2
65-40-250 25 80 10.3 53 15 Y160M2-2
65-40-250A 20 51 5.67 49 7.5 Y132S2-2
65-40-315 25 125 18.9 45 30 Y200L1-2
80-50-200 50 50 9.7 70 15 Y160M2-2
80-50-200A 45 40 7.8 63 11 Y160M1-2
80-50-200B 40 32 6.37 55 7.5 Y132S2-2
80-50-250 50 80 17.1 58 22 Y180M-2
80-50-250A 43 60 12.8 55 18.5 Y160L-2
80-50-315 50 125 30.4 56 37 Y225L2-2
80-50-315A 45 100 23.6 52 30 Y200L1-2
100-65-200 100 50 18.4 74 22 Y180M-2
100-65-200A 94 44 16.00 70 22 Y180M-2
100-65-250 100 80 32.06 68 37 Y200L2-2
100-65-250A 95 72 29.00 64 37 Y200L2-2
100-65-315 100 125 50.06 68 75 Y280S-2
100-65-315A 95 113 45.23 64 55 Y250M-2
125-100-200 200 50 35.40 77 45 Y225M-2
125-100-200A 178 40 26.60 73 37 Y200L2-2
125-100-250 200 70 47.00 80 55 Y250M-2
125-100-250A 190 62 41.60 78 55 Y250M-2
150-150-200 350 50 60 80 75 Y280S-2

tags :
Request a free quote

related products
  •  Heat Transfer Oil Pump - Hot oi

    We're professional Heat Transfer Oil Pump manufacturers and suppliers in China high quality products with competitive price. We warmly welcome you to buy Hot oil circulating pump from our factory...

  •  Cooking hot oil Pump for fryer

    China Hot Oil Cooking Pump for Fat Fryer / Filter,close coupled Motor hp 1/2, 20lpm,High temp Teflon rollers,portable,cast-iron or stainless steel 304 Material for high temperature oil application....

  •  High Temperature Hot Water Cent

    KRS type high temperature hot water pump is a single-stage cantilever centrifugal pump,Deliver temperature below 400°C without solid particles. It is also an ideal pump for circulating hot water in various heating devices...

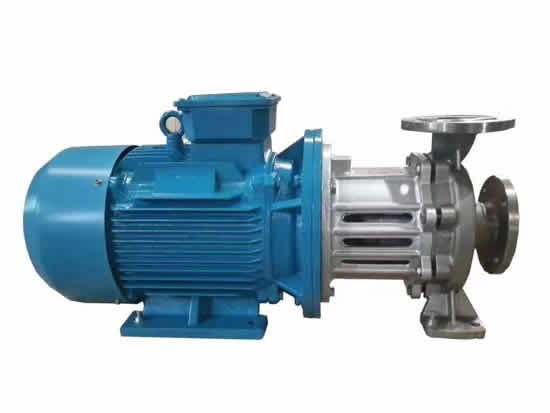

  •  Magnetic drive hot oil pumps

    The magnetic drive centrifugal hot oil pumps uses magnetic drive to realize the contactless transmission of torque,Suitable for transfer of high temperature hot water,HEAT-TRANSFER OIL,methanol,glycol,potions,low temperature liquid oxygen,and other me...

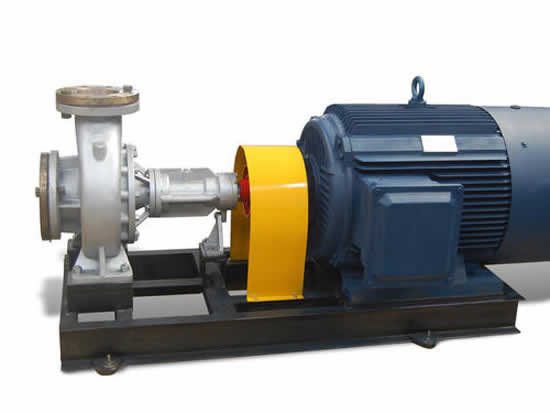

  •  BRY type Thermal Liquid Hot Oil

    BRY type Hot Oil Thermal Liquid pumps is coupling type circulation pump for transferring the high temperature conduction oil,Made of cast steel or stainless steel, Max capacity 1000m³/h,head 150 m,Top quality best price,If you have any inquiry,pl...

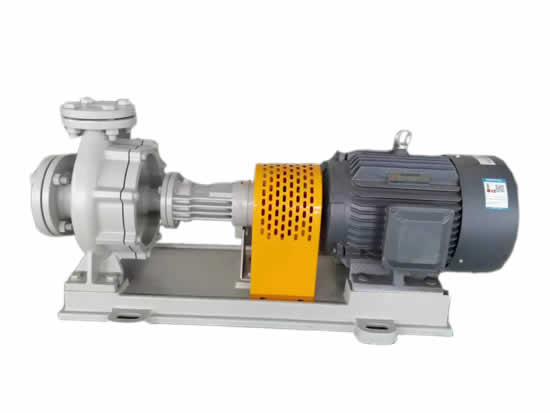

  •  Thermal Oil Pumps & Hot Oil Cir

    Thermal oil pumps also called hot oil pumps, are designed for the movement of heat-transfer oils under high temperature conditions.Thermal oil pump supplier,manufacturer of thermal oil pumps,Cast steel high temperature oil pump from china....

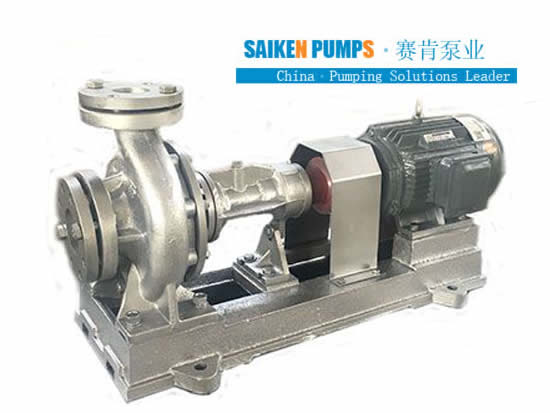

  •  WRY Model hot oil pump

    hot oil pump manufacturer & factory in china - botou saiken pumps...

  •  High Temperature Thermal Oil ci

    High Temperature Thermal Oil circulating Pump manufacturer & factory in china,china hot oil transfer pump for Boiler Thermal Oil Pump,Suppliers.Capacity:1-200m³/h,Temperature:-20-350 degrees,Head:10-125m...

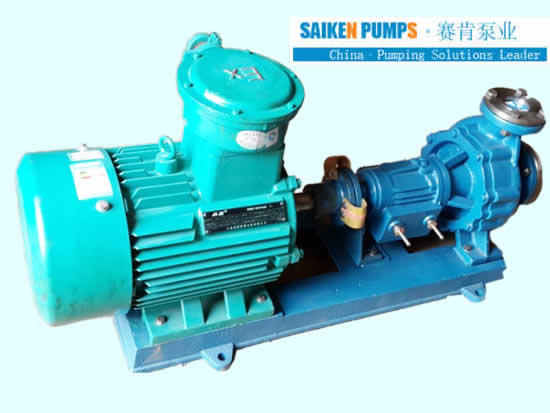

  •  Centrifugal hot oil pump - RY S
